Manual Selector Assembly Components

Tightening torque

Manual selector assembly bolt (a): 18 N.m (1.8 kg-m, 13.0 lb-ft)

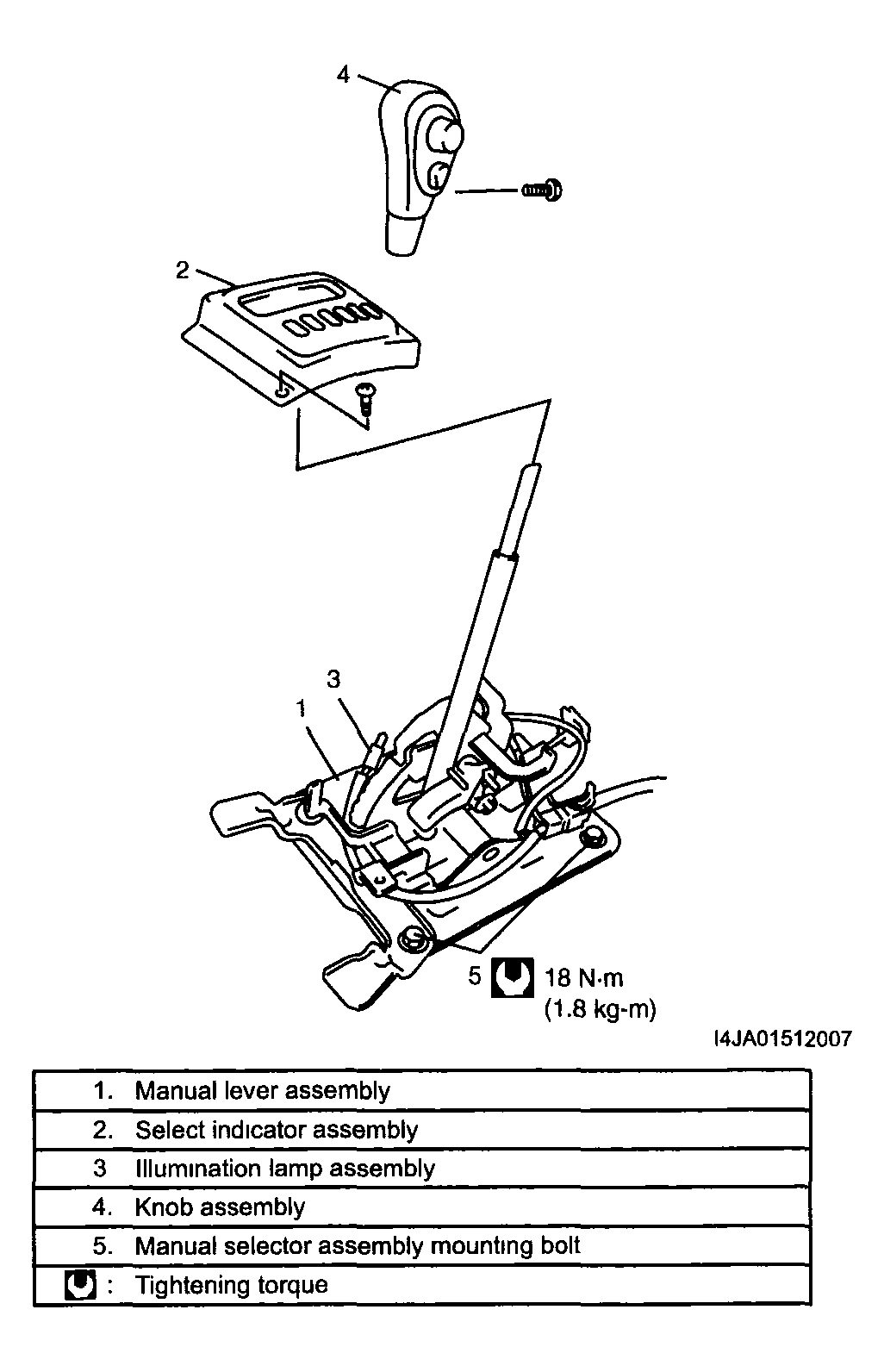

Fig 1: Tightening Manual Selector Assembly Bolt

Courtesy of SUZUKI OF AMERICA CORP.
