General Description
›
Electronic Shift Control System Description
Electronic Shift Control System Description

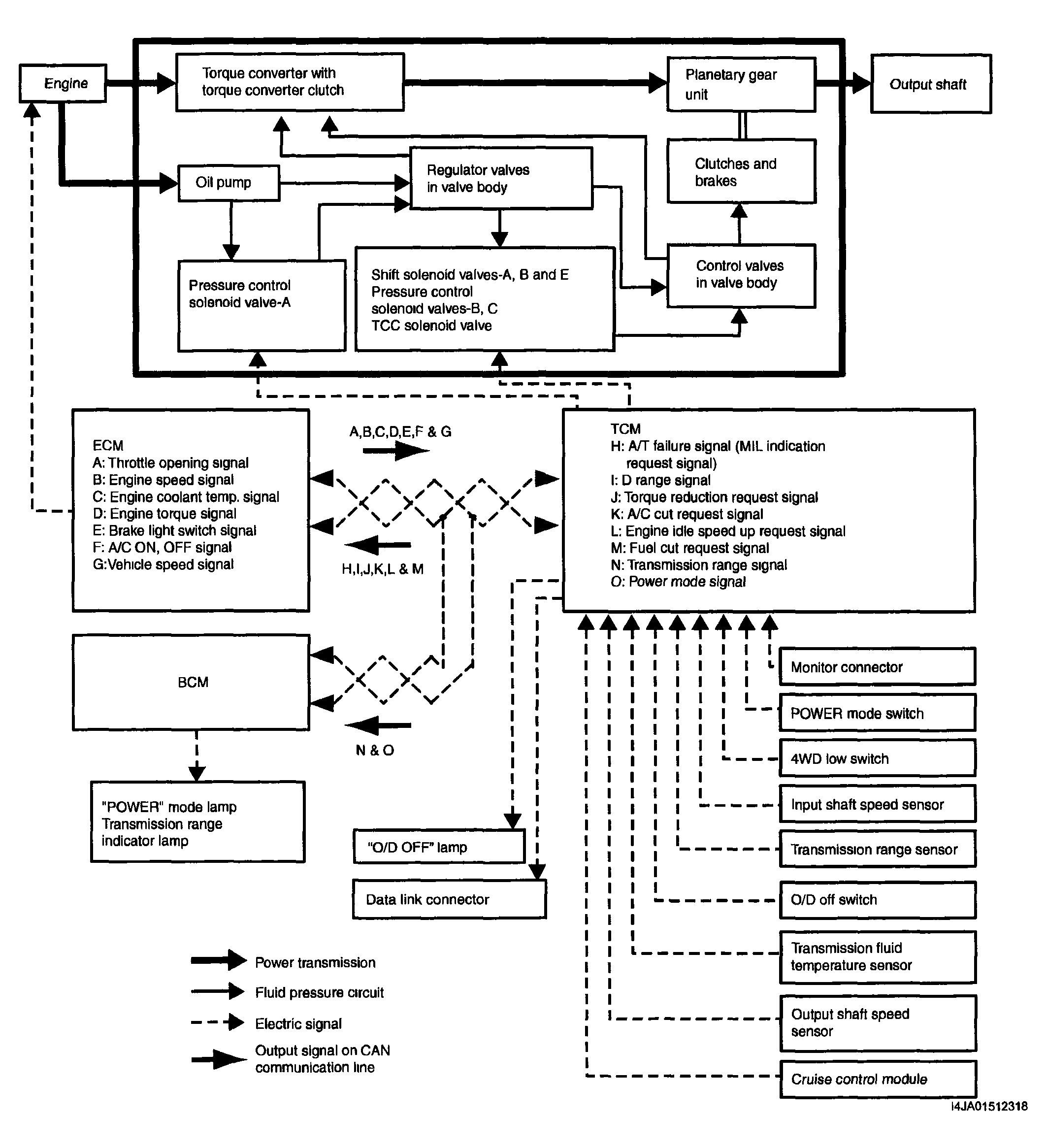

Fig 1: Electronic Shift Control System Description Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
