Transmission
›
Automatic Trans
›
Automatic Transmission
›
5A/T
›
General Description
›
Electronic Shift Control System Wiring Diagram
›
Notes
Electronic Shift Control System Wiring Diagram: Notes

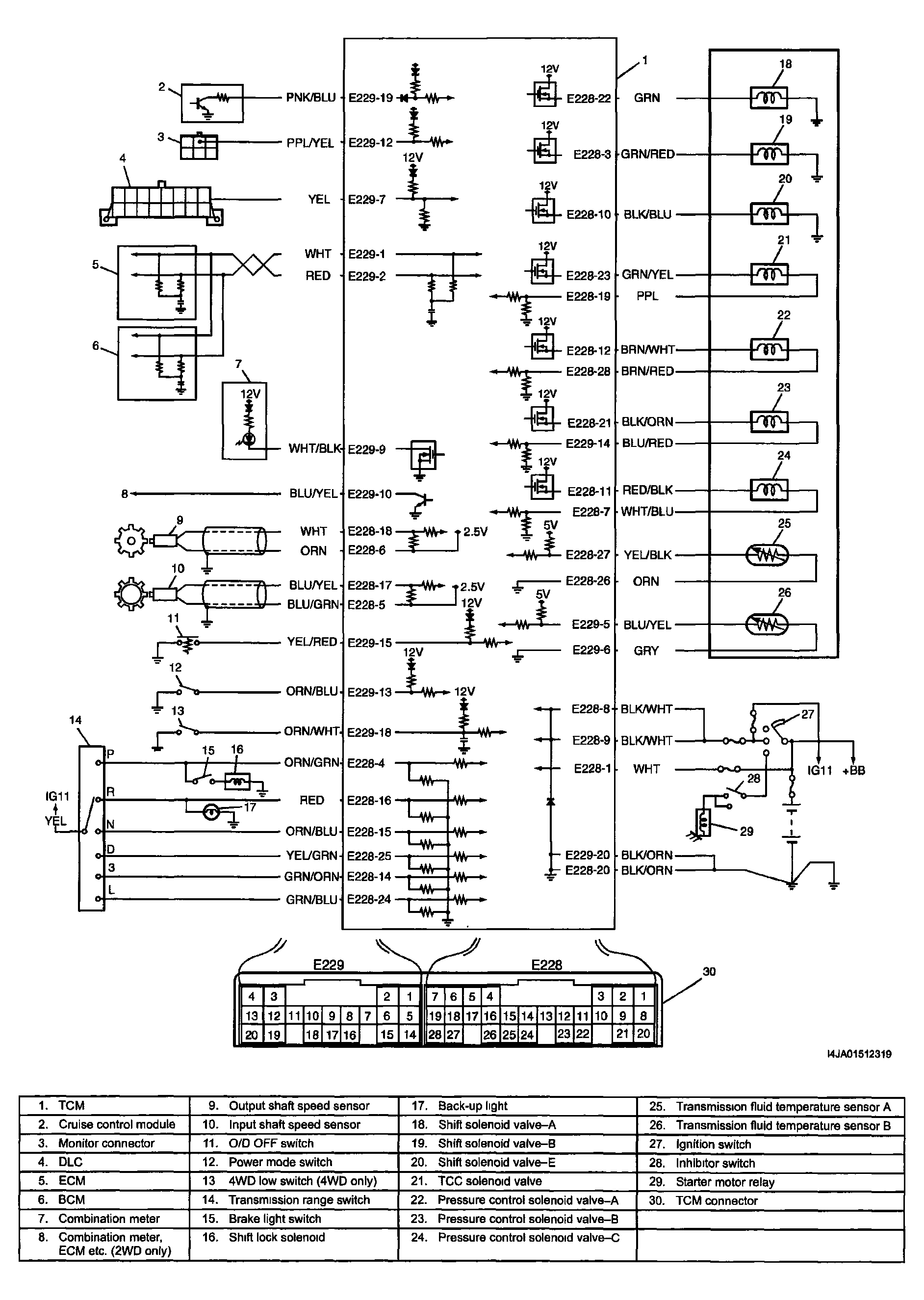

Fig 1: Electronic Shift Control System - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
