FixVault
Home
›
Suzuki
›
2005
›
XL-7 EX, RWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission
›
5A/T
›
Repair Instructions
›
Automatic Transmission Unit Components
Automatic Transmission Unit Components

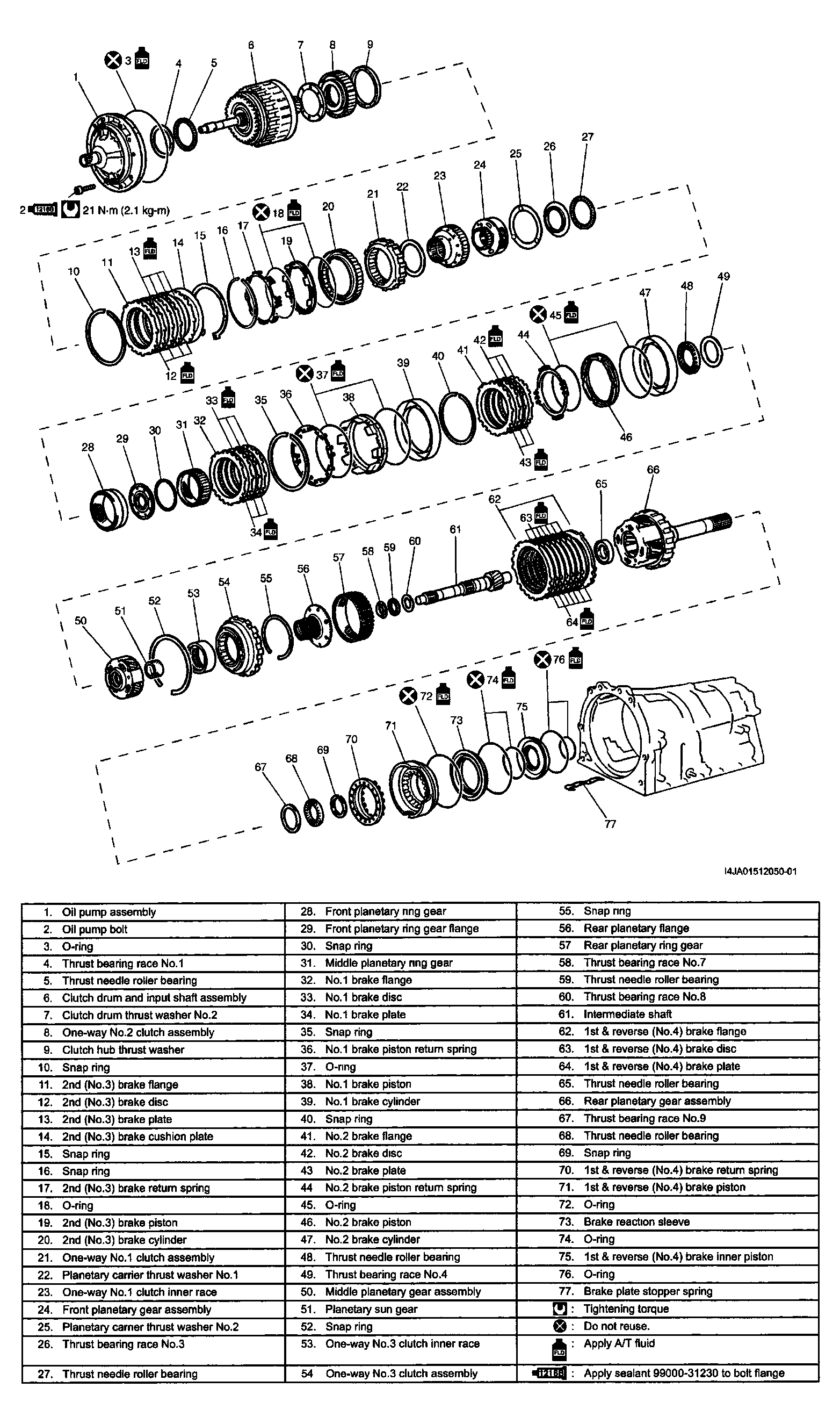

Fig 1: Identifying Automatic Transmission Unit Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
