Generator Drive Belt Removal and Installation: Installation

Reference: GENERATOR DRIVE BELT INSPECTION

1. Loosen tensioner by turning the tensioner pulley clockwise.
2. While holding the tensioner, install belt.
   NOTE: Make sure that the belt fits each pulley's groove properly.

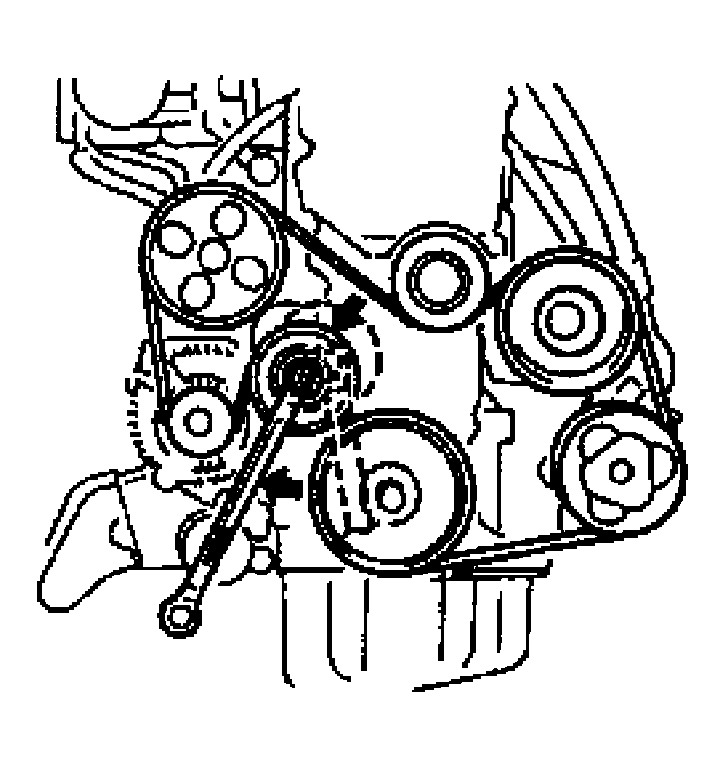

   Fig 1: Installing Belt

   Courtesy of SUZUKI OF AMERICA CORP.
3. Check belt tension referring to GENERATOR DRIVE BELT INSPECTION .
4. Install engine under cover.
5. Connect negative cable at battery.
