Cooling System Components
Cooling System Components

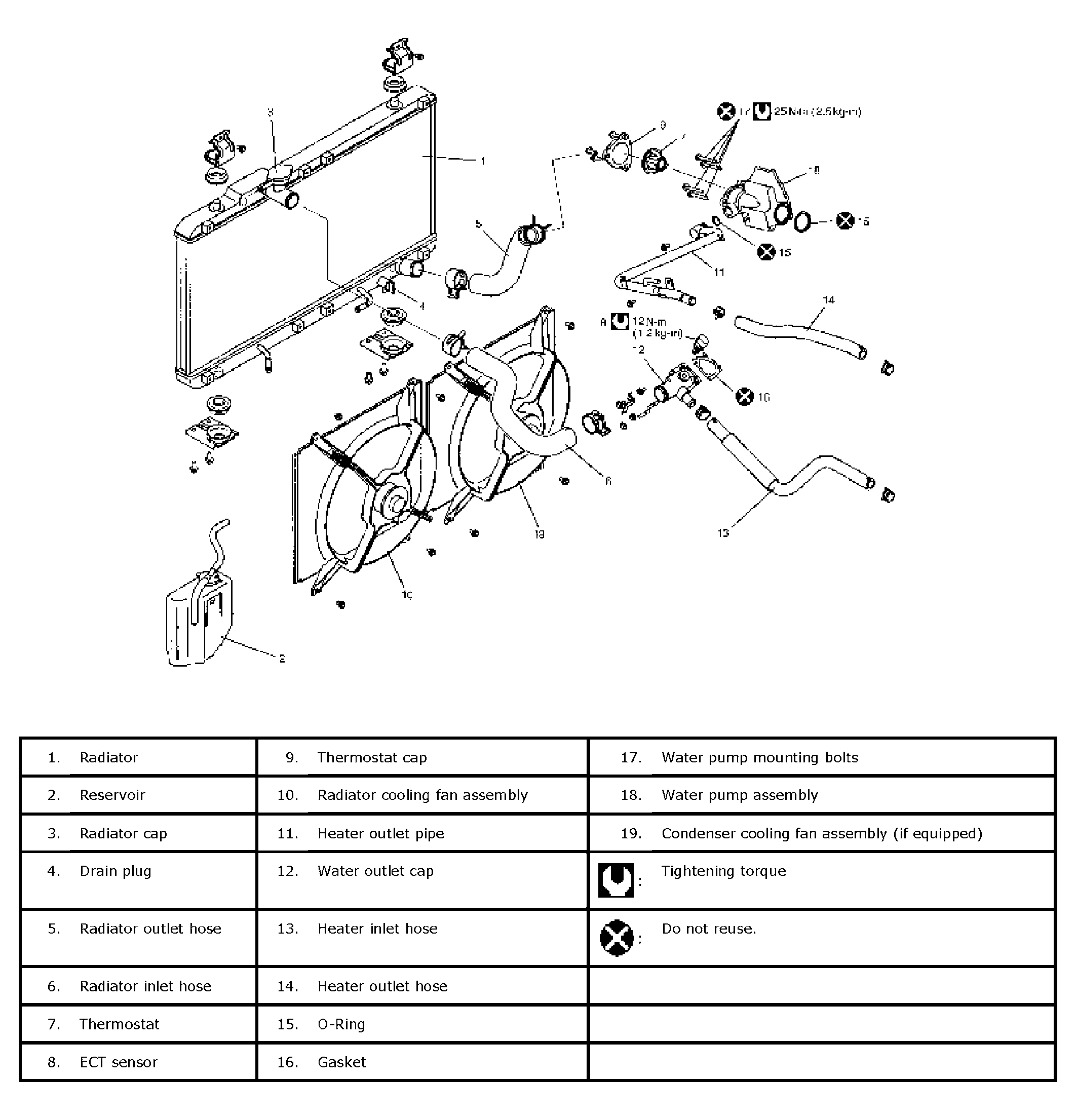

Fig 1: Identifying Cooling System Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
