For Connection Other Than Quick Joint

Clamp around fuel tank
NOTE: Be sure to install hose to spool of pipe surely.

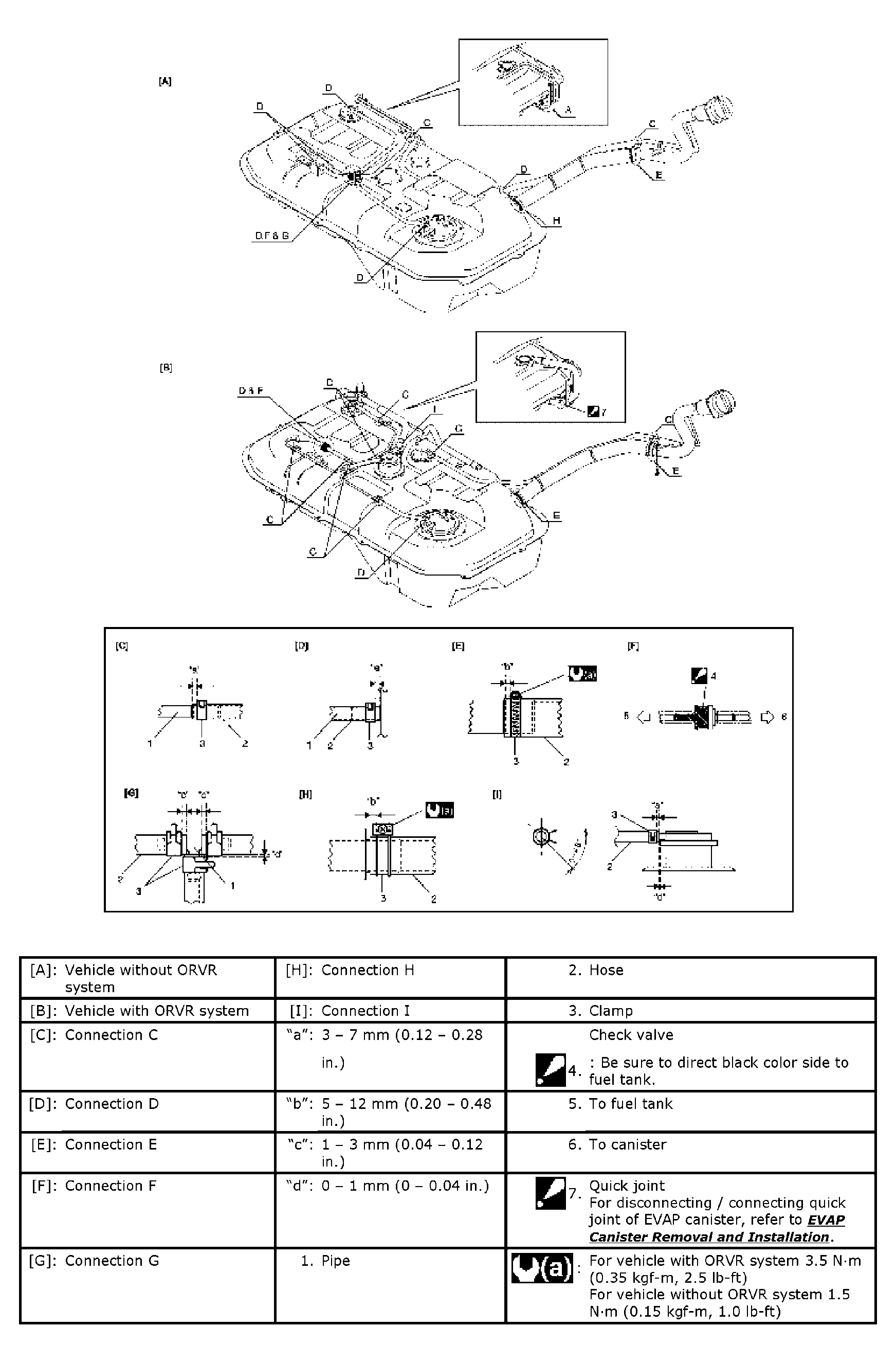

Fig 1: Identifying Fuel Hose
Courtesy of SUZUKI OF AMERICA CORP.
Clamp other than around fuel tank

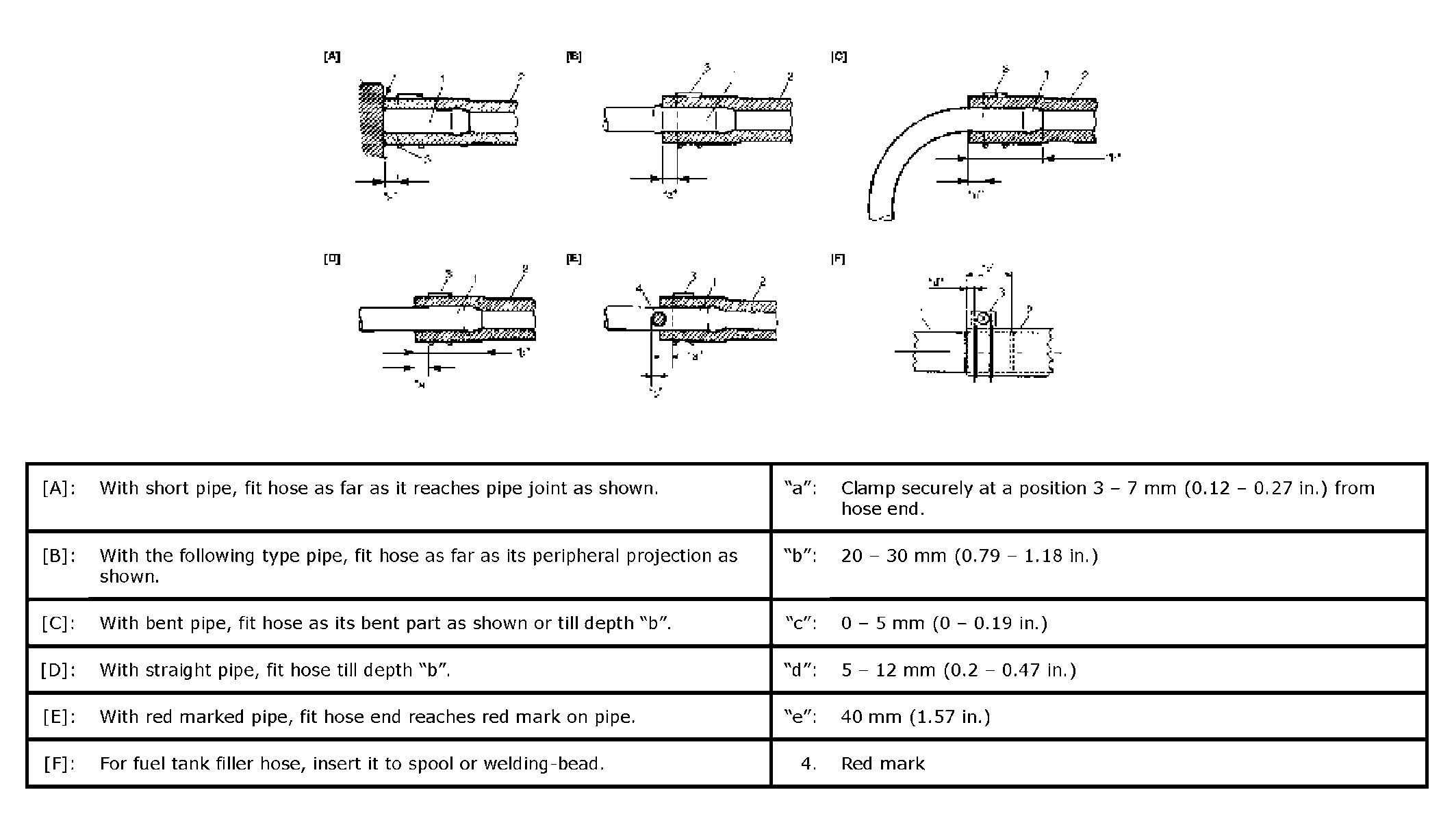

Fig 2: Identifying Clamping Position
Courtesy of SUZUKI OF AMERICA CORP.
