Fuel System
›
Schematic & Routing Diagram
›
Fuel Delivery System Diagram
Fuel Delivery System Diagram

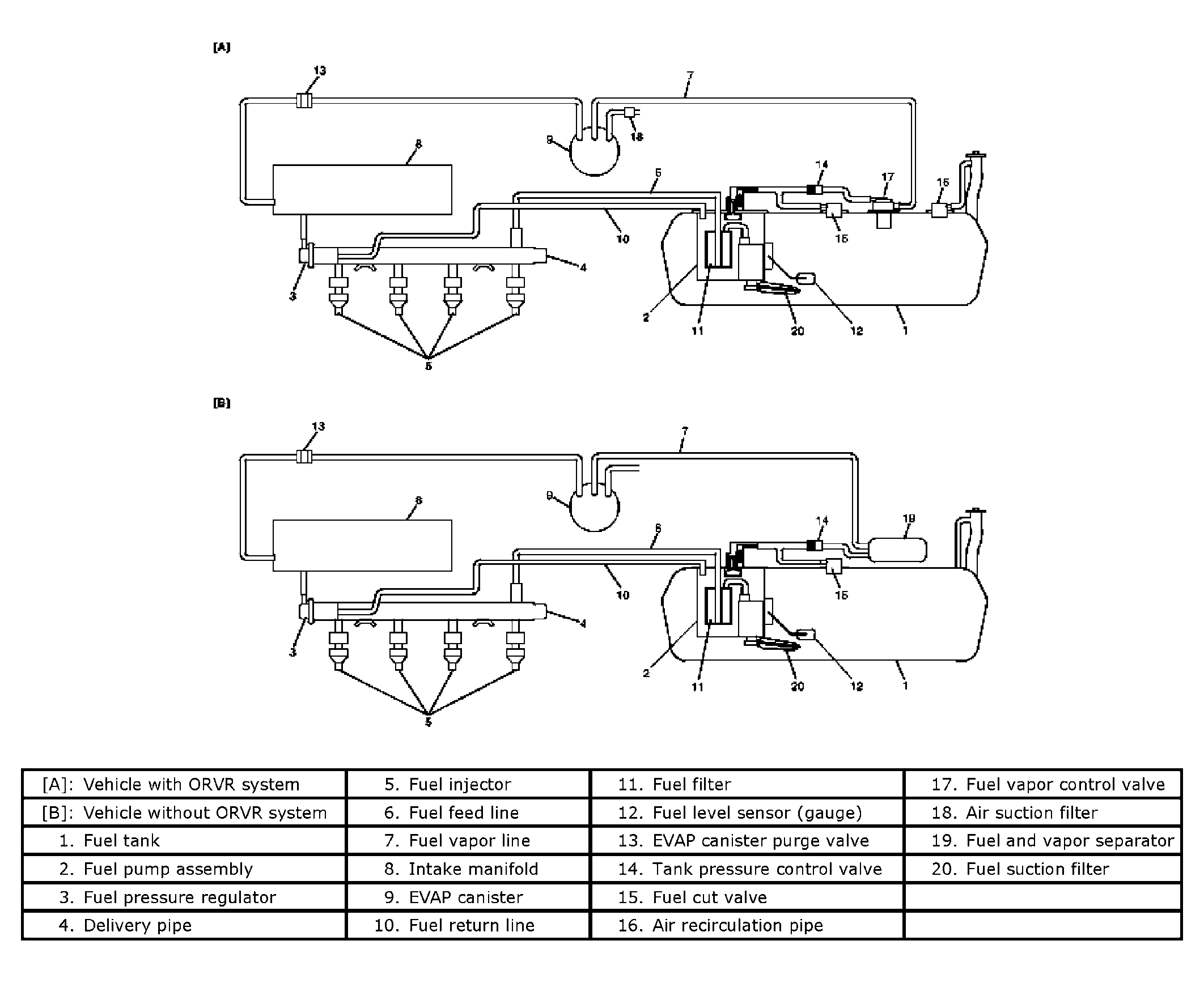

Fig 1: Fuel Delivery System - Schematic Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
