EVAP Leak Check Module Removal and Installation (Vehicle with ORVR System): Removal

  1. Remove EVAP canister with EVAP leak check module referring to EVAP CANISTER REMOVAL AND INSTALLATION .
  2. Remove EVAP leak check module (1) from EVAP canister (2).

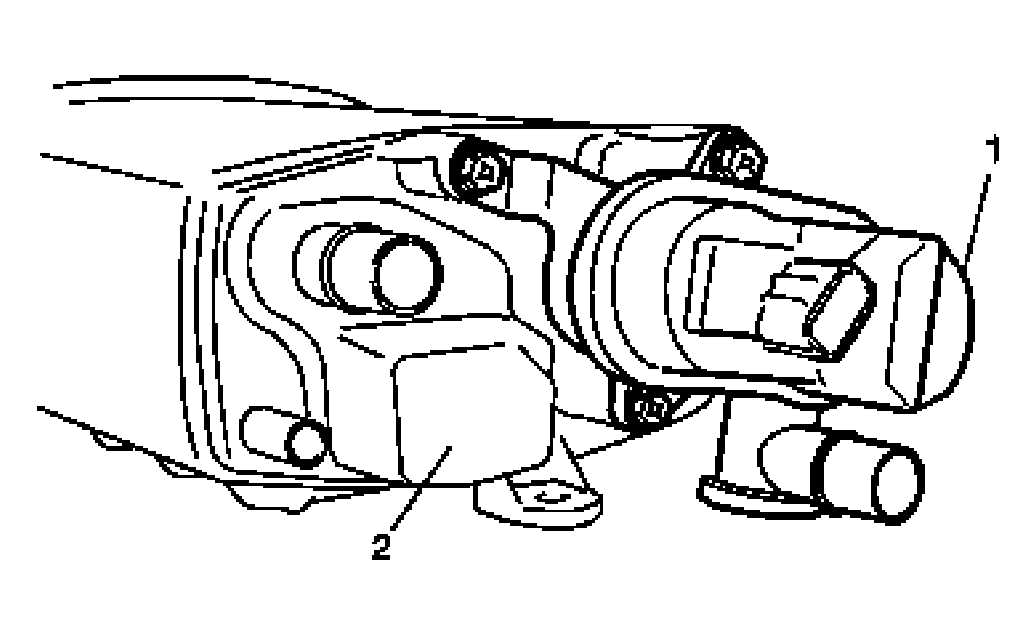

    Fig 1: Removing EVAP Leak Check Module From EVAP Canister
    G04589607Courtesy of SUZUKI OF AMERICA CORP.
