Forward and Direct Clutch Components
Forward and Direct Clutch Components

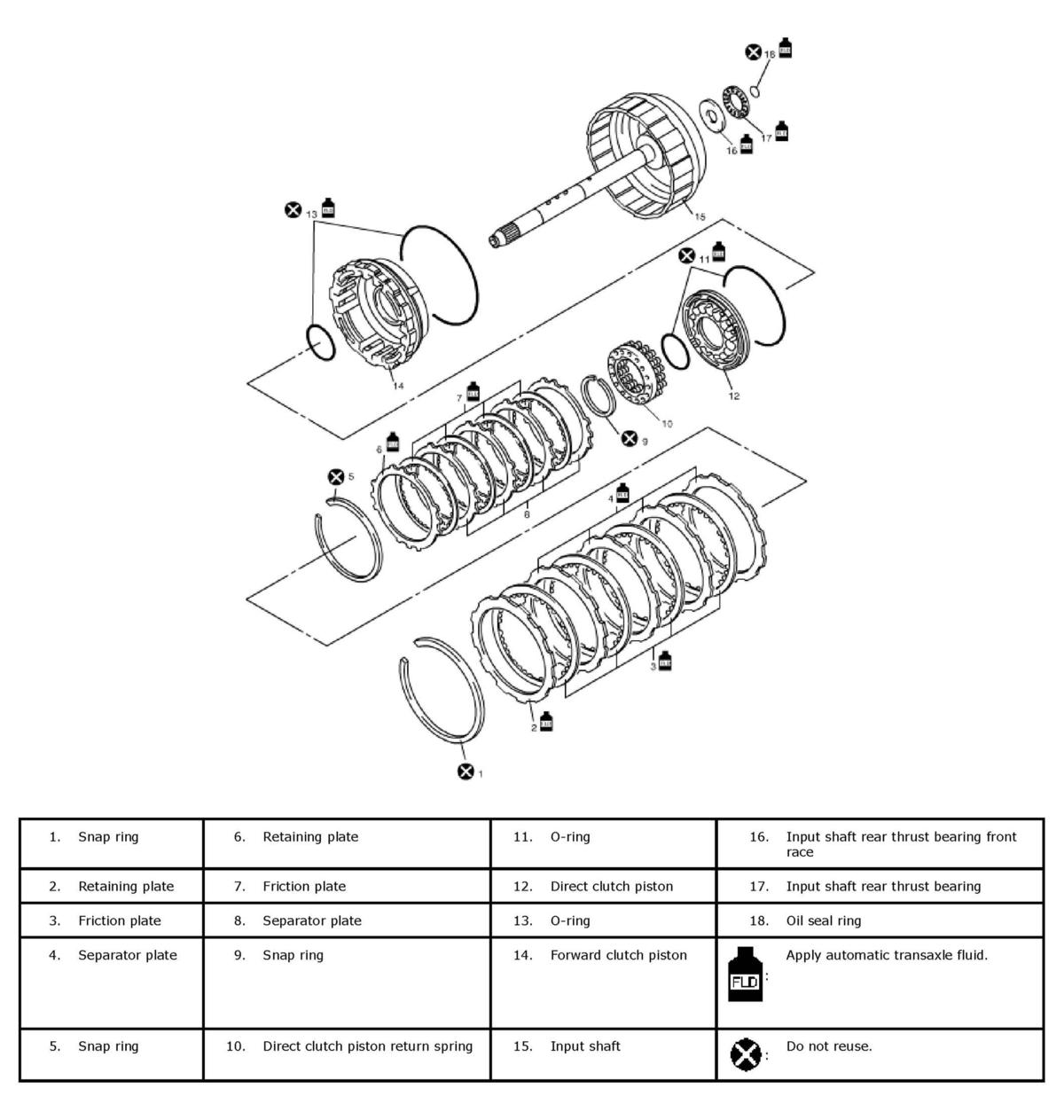

Fig 1: Identifying Forward And Direct Clutch Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
