Automatic Transmission
›
Schematic and Routing Diagram
›
Transmission Control Module (TCM) Wiring Diagram
›
Notes
Transmission Control Module (TCM) Wiring Diagram: Notes

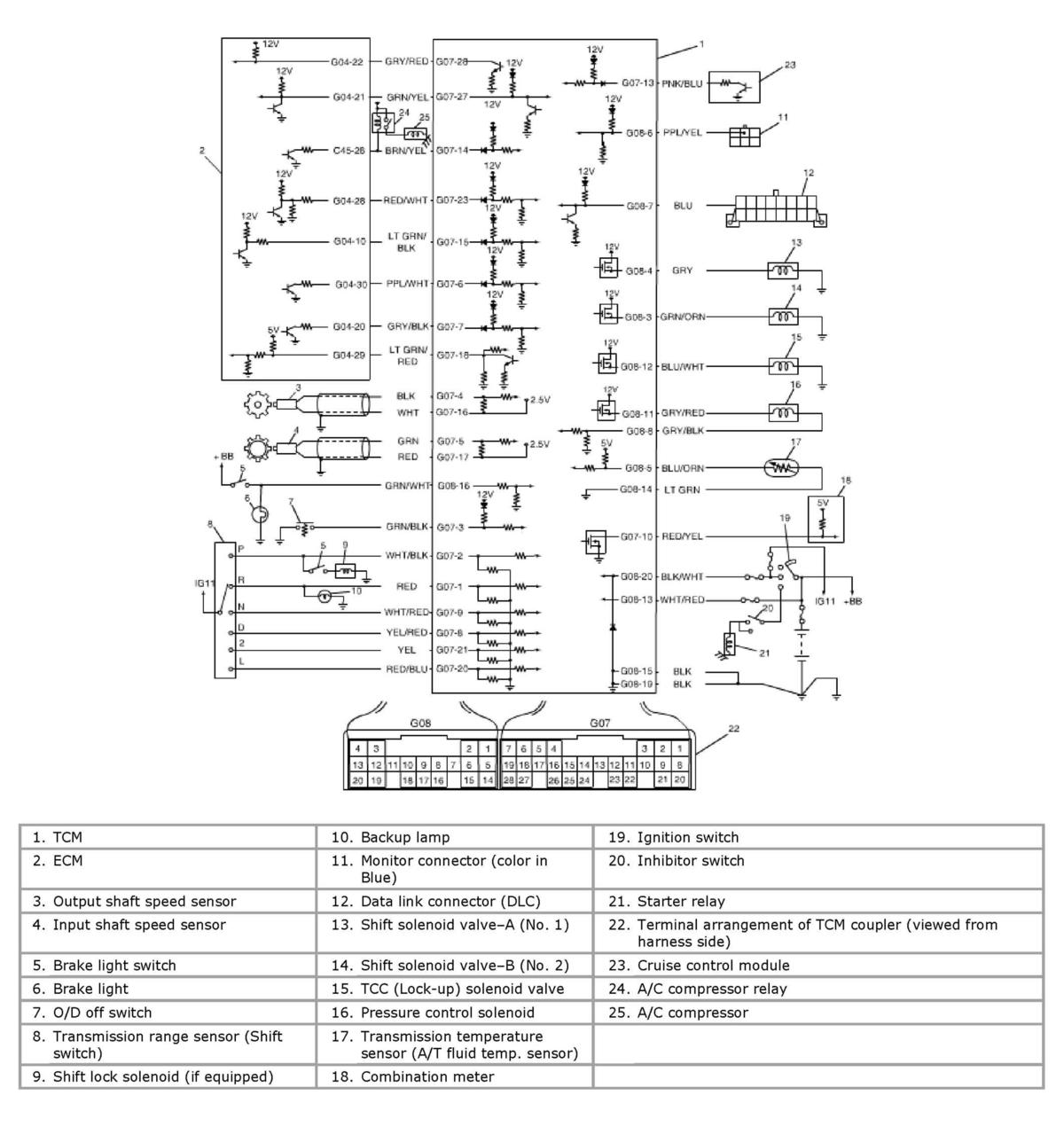

Fig 1: Wiring Diagram - Transmission Control Module (TCM)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
