DTC U0073: Control Module Communication Bus Off
›
Wiring Diagram
DTC U0073: Control Module Communication Bus Off: Wiring Diagram

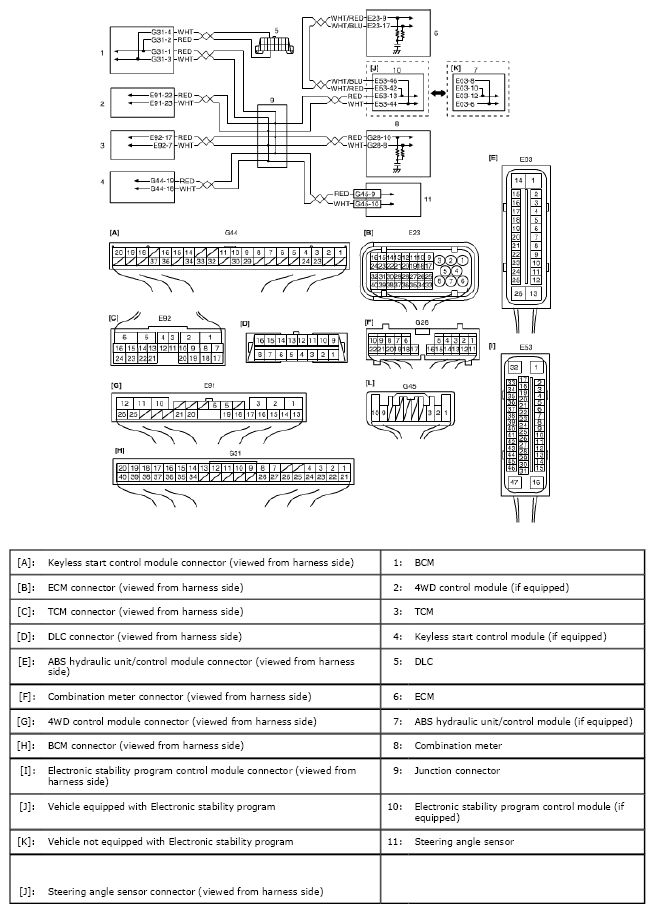

Fig 1: Wiring Diagram - DTC U0073 Control Module Communication Bus Off
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
