Grand Vitara Base, AWD, Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission
›
General Description
›
Electronic Shift Control Input/Output Table
›
Electronic Shift Control System Wiring Diagram
Electronic Shift Control System Wiring Diagram

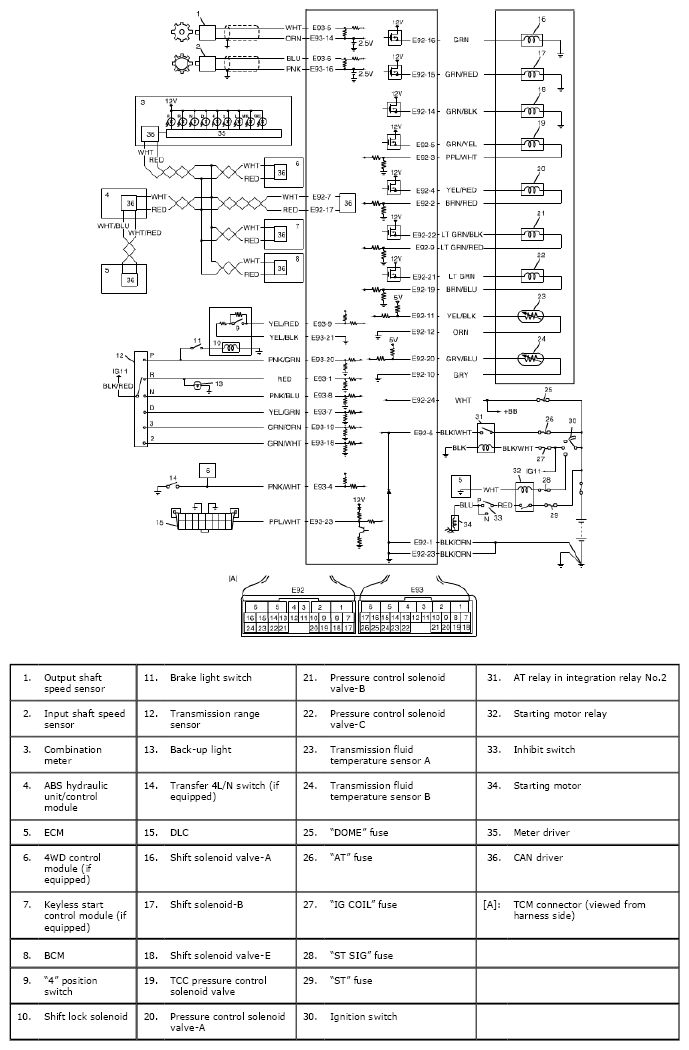

Fig 1: Electronic Shift Control System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
