Automatic Transmission Unit Components
Automatic Transmission Unit Components

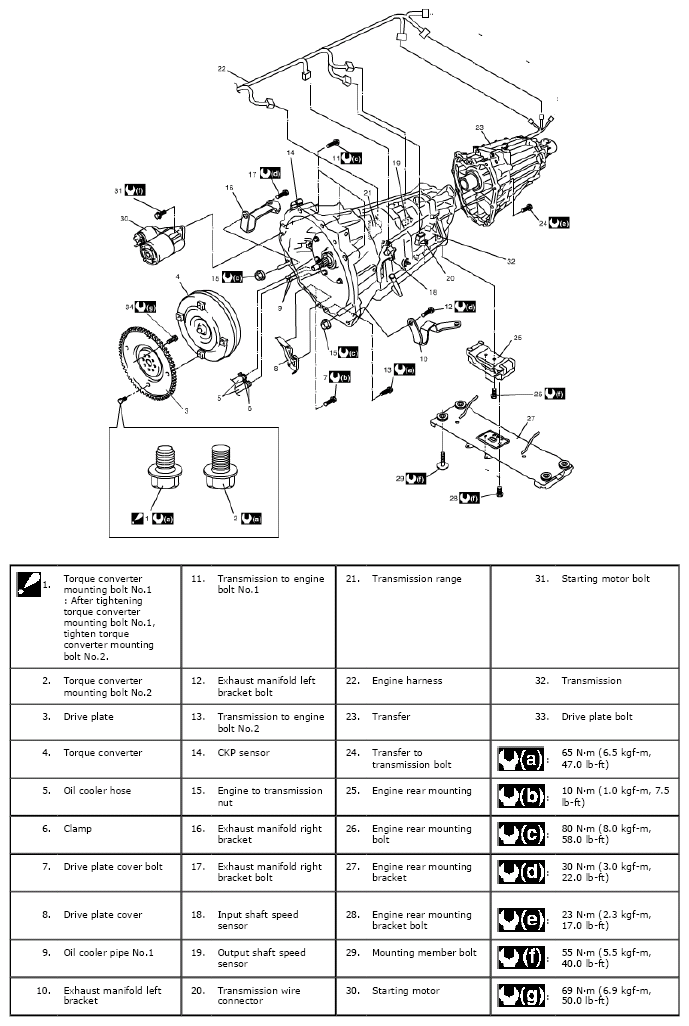

Fig 1: Automatic Transmission Unit Components With Torque Specification
Courtesy of SUZUKI OF AMERICA CORP.
Fig 1: Automatic Transmission Unit Components With Torque Specification
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
