Tightening Torque Specifications
TIGHTENING TORQUE SPECIFICATIONS
| Fastening part | Tightening torque | ||
|---|---|---|---|
| N.m | kgf-m | lb-ft | |
| Starting motor mount bolt | 55 | 5.5 | 40.0 |
| Starting motor battery cable nut | 11 | 1.1 | 8.0 |
NOTE:

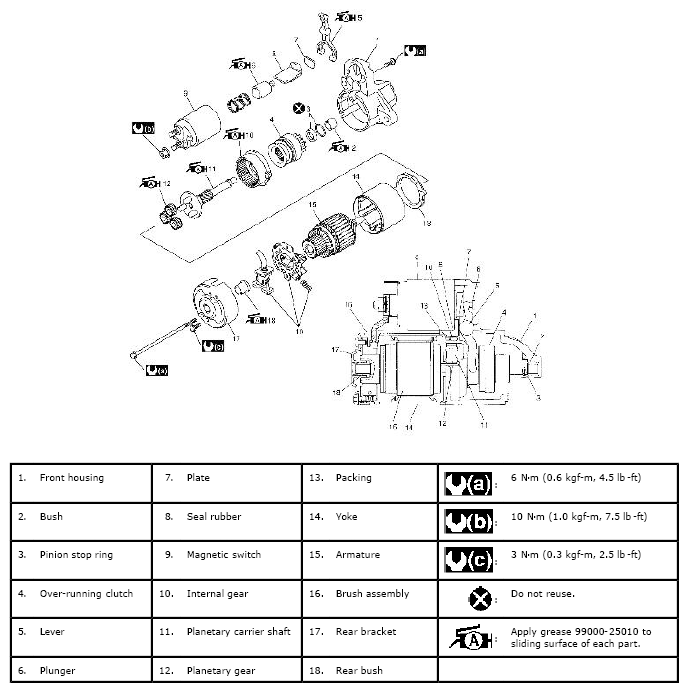

Specified tightening torque is also found in Figure.
