Ignition System Wiring Circuit Diagram
Ignition System Wiring Circuit Diagram

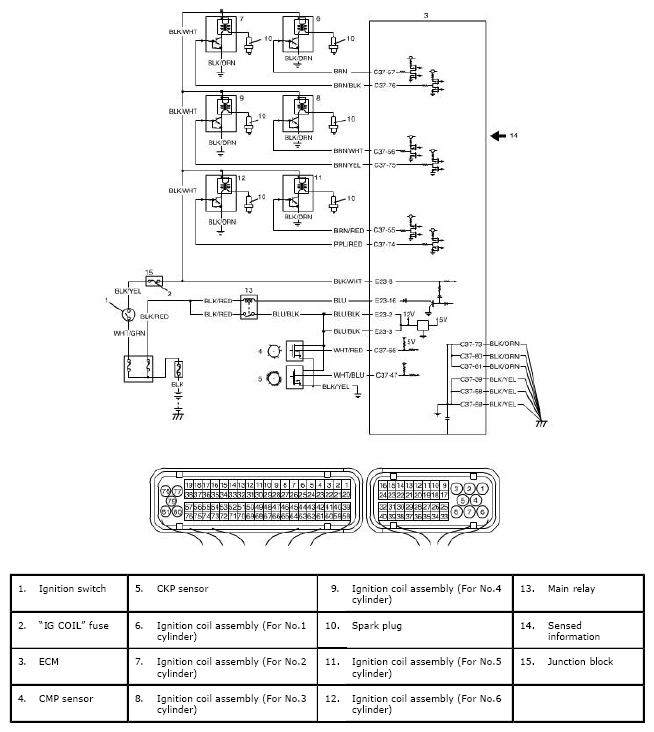

Fig 1: Ignition System Wiring Circuit Diagram
