DTC P0480: Cooling Fan Relay 1 Control Circuit
›
Notes
DTC P0480: Cooling Fan Relay 1 Control Circuit: Notes

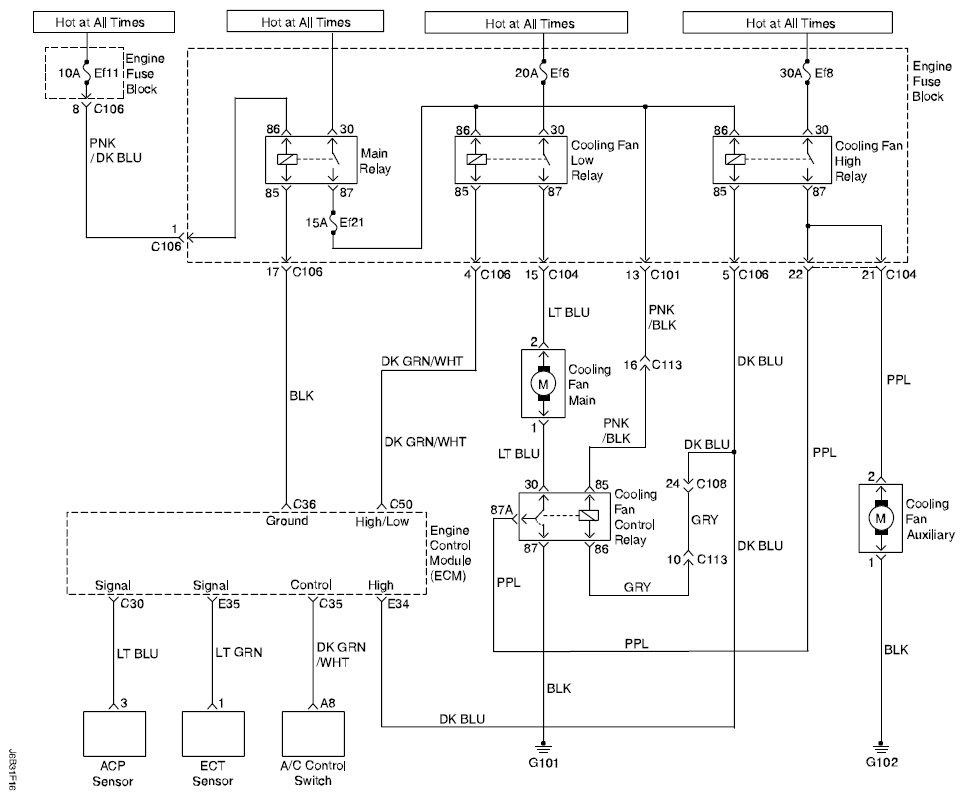

Fig 1: Cooling Fan Relay Control - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
