Engine Performance - Diagnostics - Introduction
›
Schematic & Routing Diagram
›
ECM Wiring Diagram (For HATCHBACK Model) - 4/7
ECM Wiring Diagram (For HATCHBACK Model) - 4/7

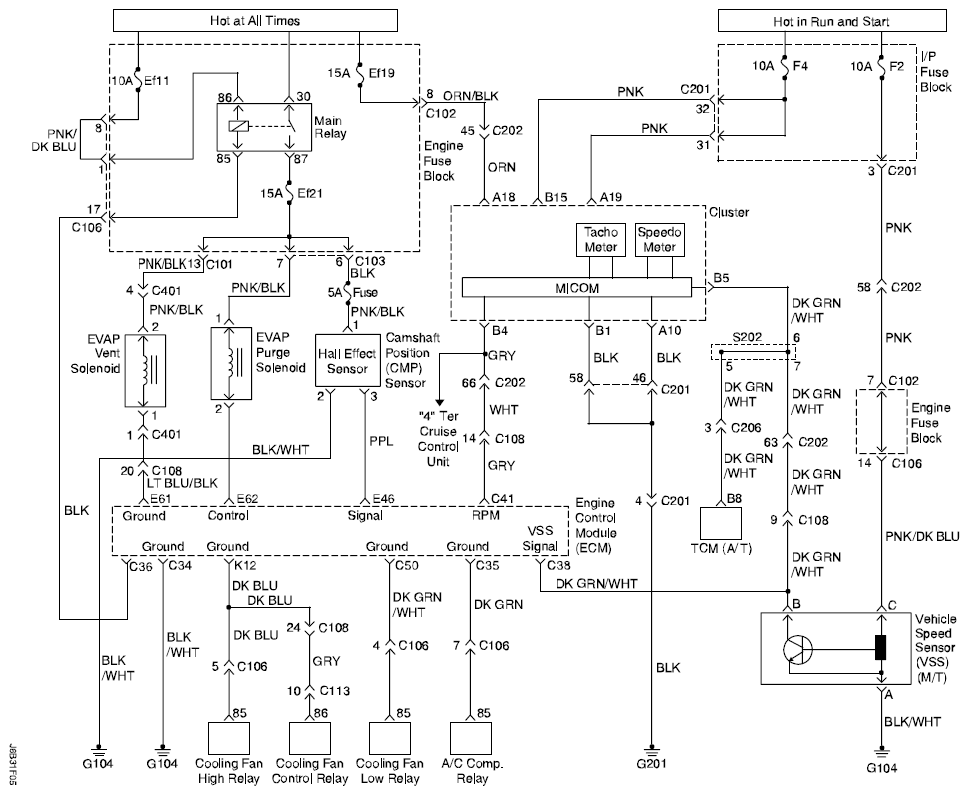

Fig 1: ECM Wiring Diagram (For Hatchback Model) - 4/7
