DTC P0304: Cylinder 4 Misfire Detected
›
Notes
DTC P0304: Cylinder 4 Misfire Detected: Notes

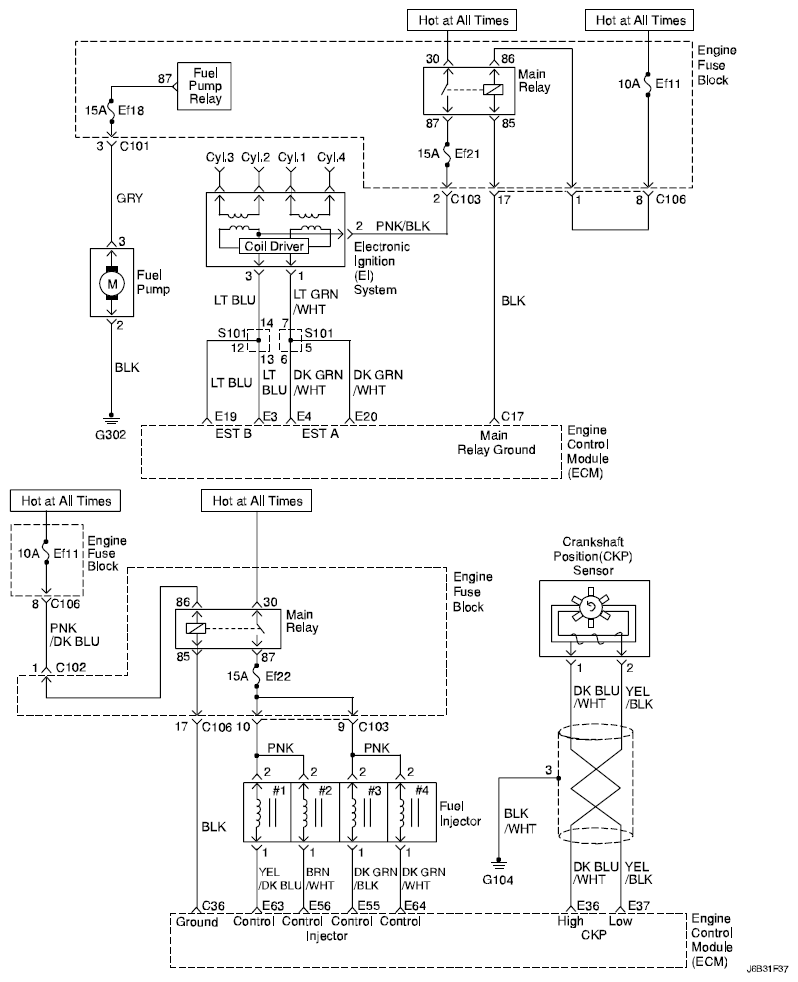

Fig 1: Cylinder Misfire Detected - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
