DTC P0300: Engine Misfire Detected
›
Notes
DTC P0300: Engine Misfire Detected: Notes

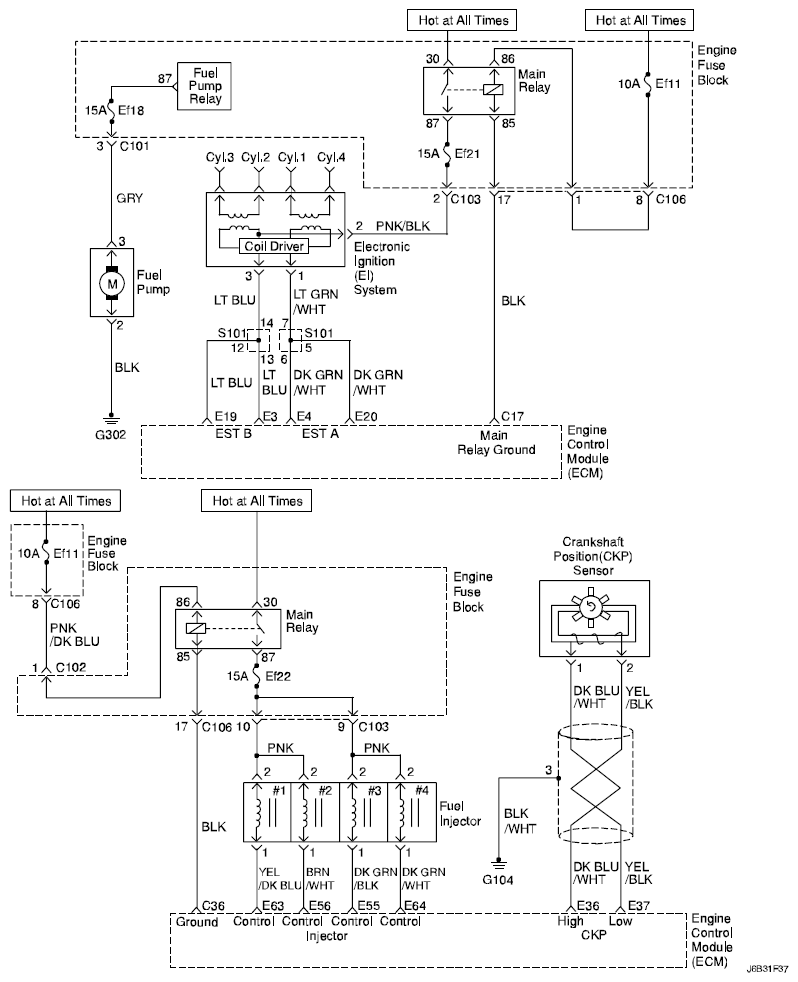

Fig 1: Engine Misfire Detected - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
