DTC P0650: Malfunction Indicator Lamp (MIL) Control Circuit
›
Notes
DTC P0650: Malfunction Indicator Lamp (MIL) Control Circuit: Notes

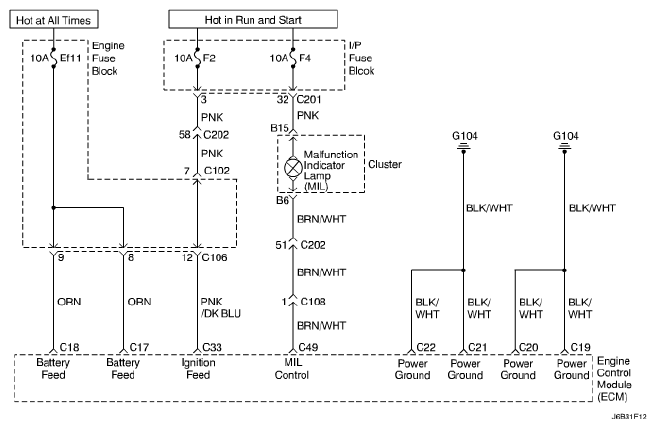

Fig 1: Malfunction Indicator Lamp Control - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
