Engine Cooling Fan Circuit Check - Dual Fan: Notes

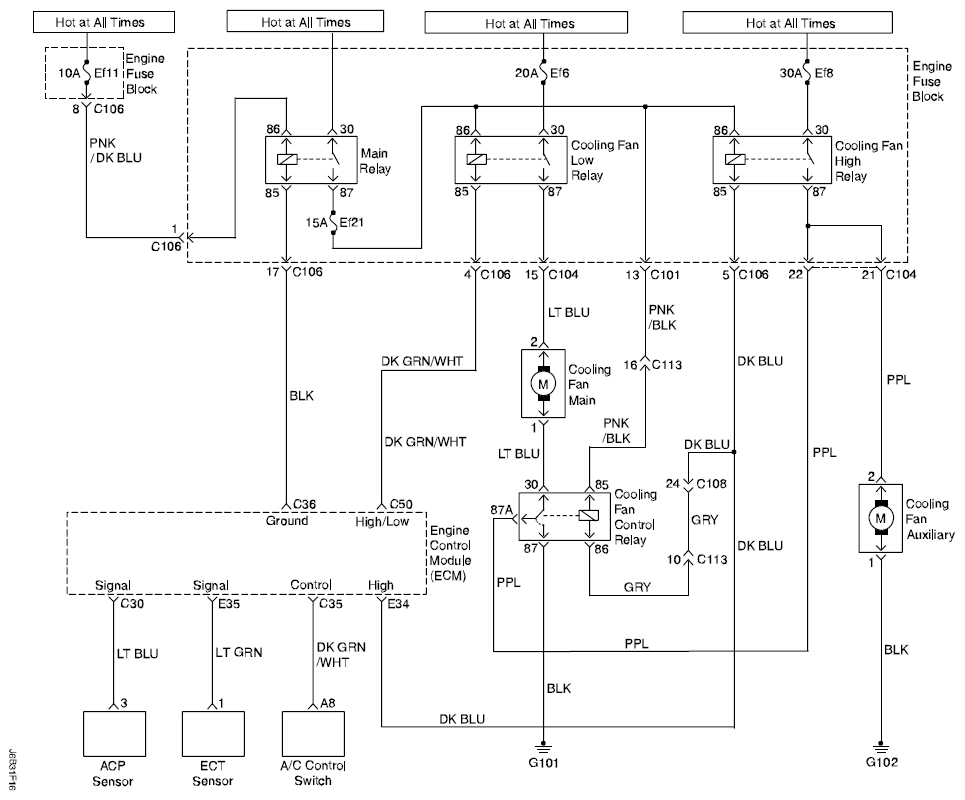

Fig 1: Engine Cooling Fan (Dual Fan) - Circuit Diagram
G04716336Courtesy of SUZUKI OF AMERICA CORP.
