Cruise Control Switch Installation

Install the cruise control switch.
Tighten:

Tighten the cruise control switch screw to 2.5 N.m (22 lb-in.).
Install the SIR module.
Install the audio remote controller.
Install the cruise control switch cover.

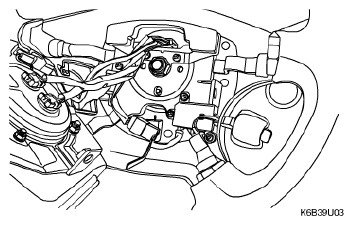

Fig 1: Identifying Cruise Control Switch Cover
Courtesy of SUZUKI OF AMERICA CORP.
