Inside Lock Rod Installation

  1. Connect the inside lock rods to the lock.
  2. Install the inside door handle. Refer to Inside Door Handle Installation .
  3. Install the door seal trim. Refer to DOOR SEAL TRIM INSTALLATION .

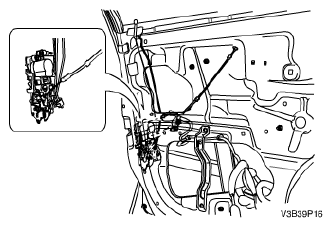

    Fig 1: Identifying Inside Lock Rods & Lock
    G04720484Courtesy of SUZUKI OF AMERICA CORP.
