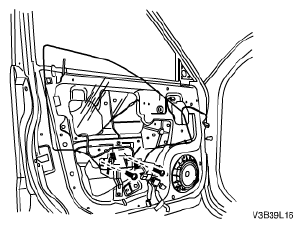

Front Door Glass Installation
- Install the glass in the door and position the glass within the window regulator.CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
- Install the glass to the window regulator with the screws.
Tighten:
Tighten the glass screws to 7 N.m (62 lb-in.).
- Install the B-pillar molding. Refer to B-PILLAR MOLDING INSTALLATION .
- Install the door seal trim. Refer to DOOR SEAL TRIM INSTALLATION .
