Intelligent Switching Unit (ISU) Removal

  1. Disconnect the negative battery connector.
  2. Remove the instrument panel under cover. Refer to INSTRUMENT PANEL REMOVAL .
  3. Remove the knee bolster. Refer to DRIVER'S SIDE KNEE BOLSTER REMOVAL .
    Fig 1: Identifying Driver Side Knee Bolster & Bolts
    G04720591Courtesy of SUZUKI OF AMERICA CORP.
  4. Disconnect the electrical connectors.
  5. Remove the nuts securing the Intelligent Switching Unit (ISU).
  6. Remove the Intelligent Switching Unit (ISU).

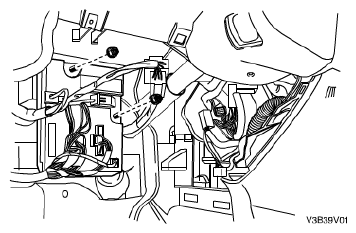

    Fig 2: Identifying Intelligent Switching Unit With Nuts
    G04720279Courtesy of SUZUKI OF AMERICA CORP.
