Body Electrical Control System
›
Schematic and Routing Diagram
›
Intelligent Switching Unit Circuit Diagram
Intelligent Switching Unit Circuit Diagram

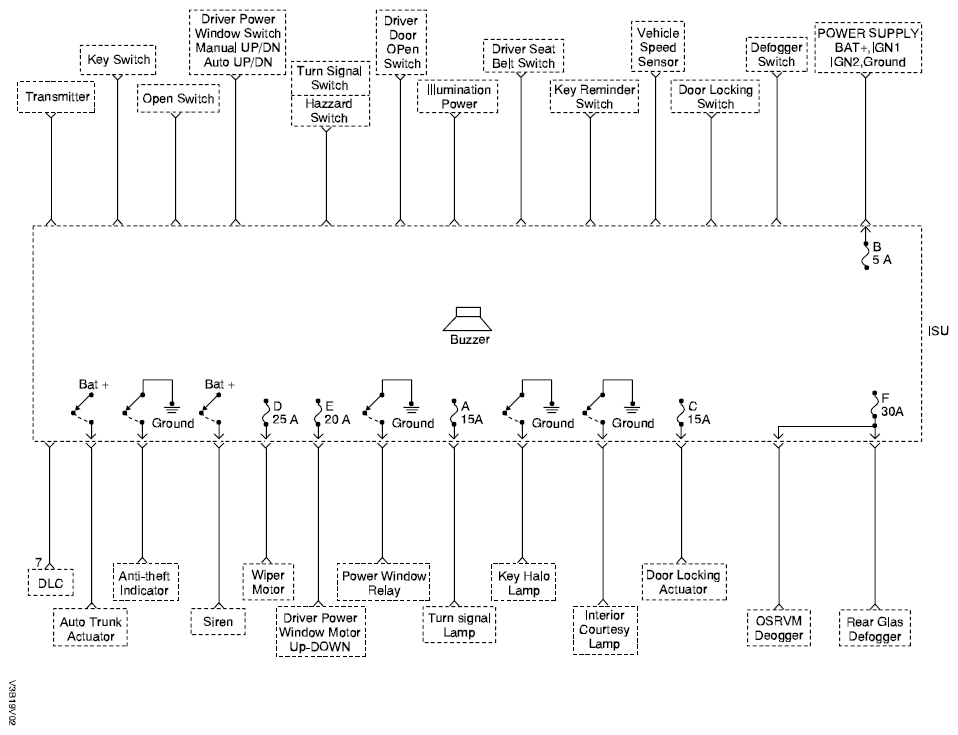

Fig 1: Intelligent Switching Unit Circuit Diagram
