Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component	Location

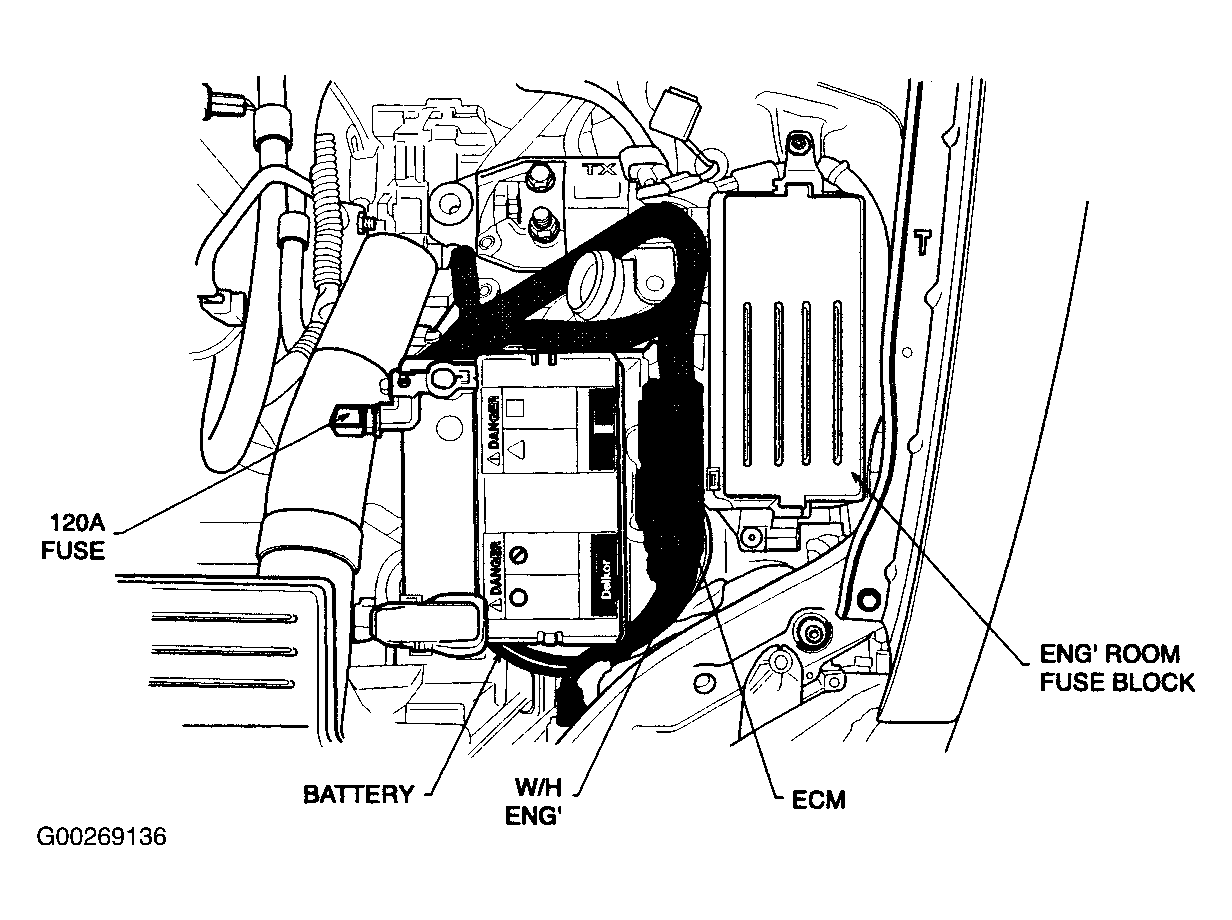

Engine Room Fuse Block	Left front of engine compartment. See Figure.

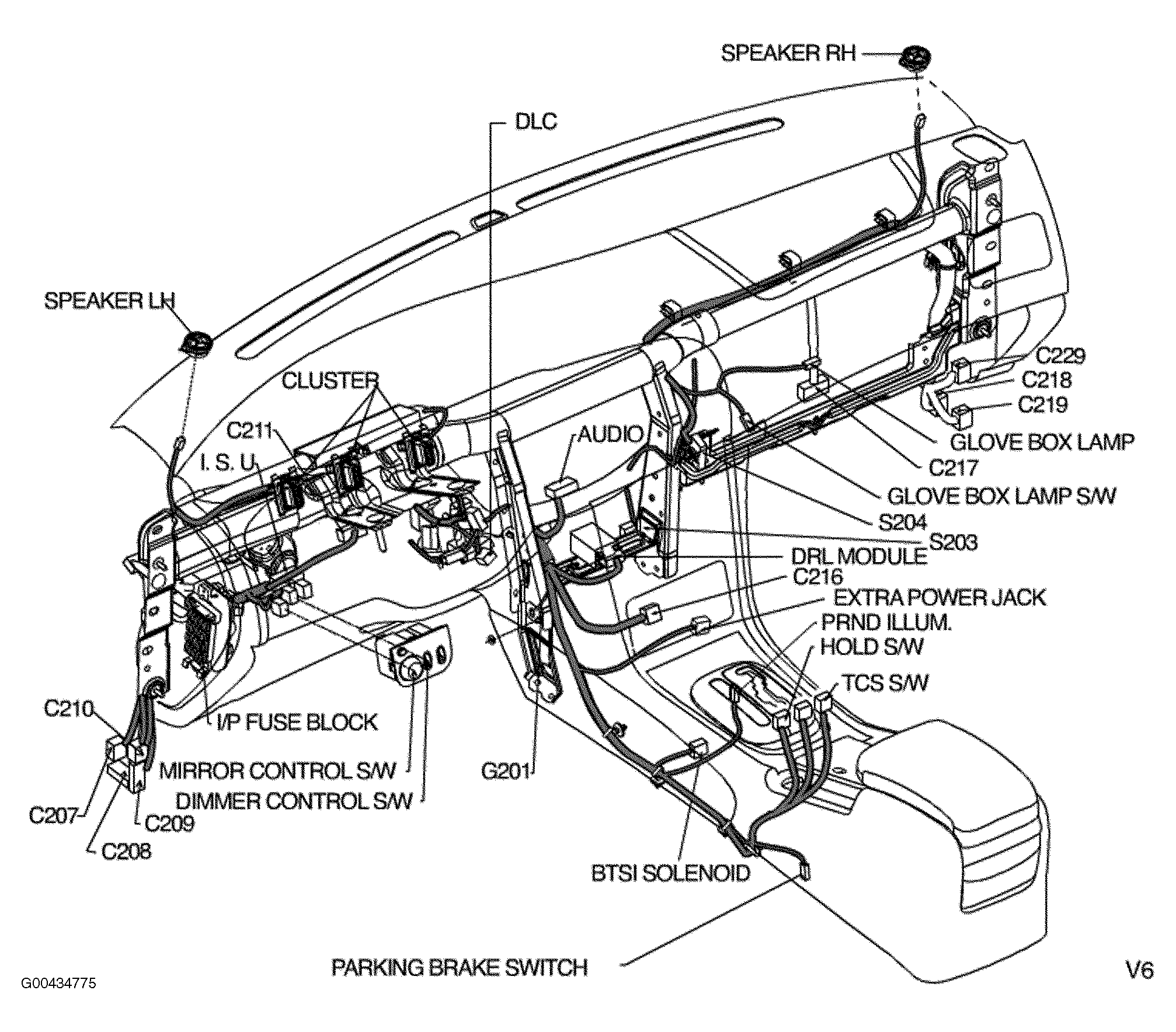

I/P Fuse Block	Left end of dash. See Figure.
120A Fuse	On battery positive terminal. See Figure.
