Starting System
›
Schematic and Routing Diagram
›
Starting System Diagram
Starting System Diagram

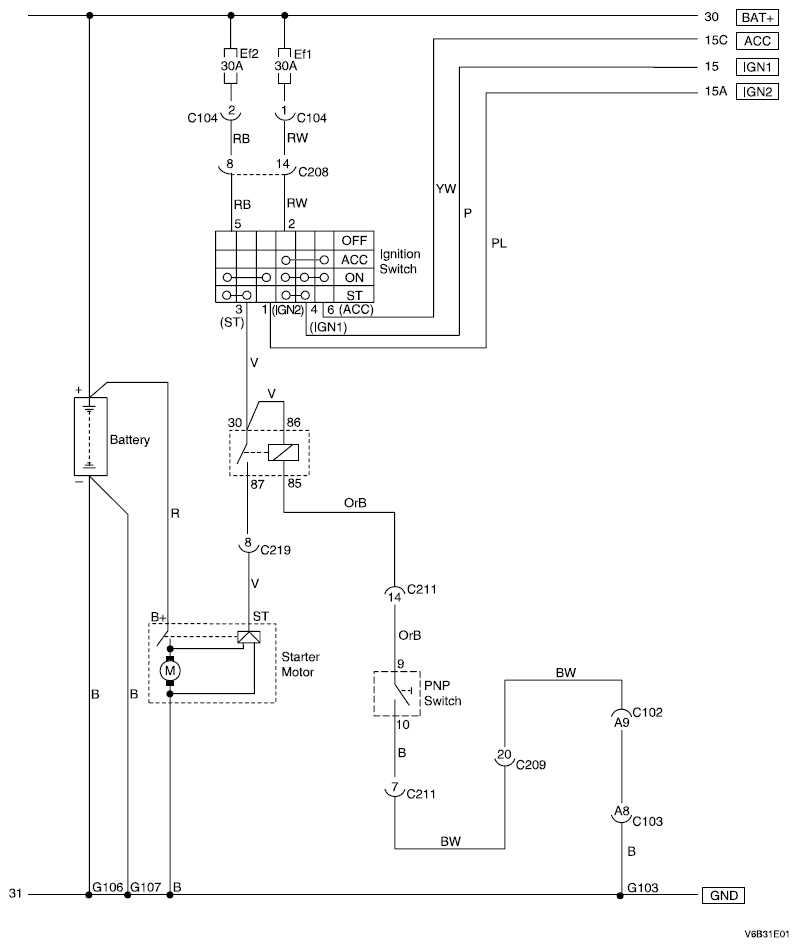

Fig 1: Starting System - Schematic And Routing Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
