Ignition Coil Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the ignition coil wiring harness connectors.
  3. Remove the ignition coils.

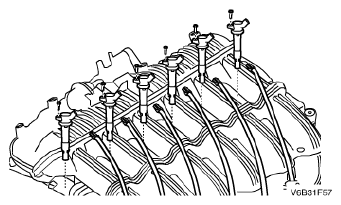

    Fig 1: Identifying Ignition Coil Wiring Harness Connectors
    G04719139Courtesy of SUZUKI OF AMERICA CORP.
