Exhaust EGR Pipe Installation
- Installation should follow the removal procedure in the reverse order.

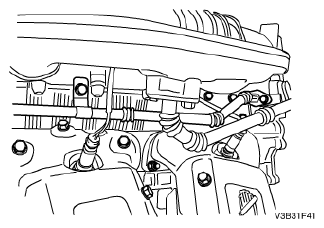

- Install the exhaust EGR pipe
Tighten:
- Tighten the exhaust EGR pipe-to-heater adapter retaining nuts to 8 - 12 N.m (71 - 106 lb-in.).
- Tighten the exhaust pipe bracket-to-cylinder head short side retaining bolt to 18 - 22 N.m (13 - 16 lb-ft).
- Tighten the exhaust EGR pipe flange-to-EGR valve retaining bolts to 8 - 12 N.m (71 - 106 lb-in.).
- Tighten the exhaust pipe bracket-to-cylinder head long side retaining bolt to 8 - 12 N.m (71 - 106 lb-in.).
