Engine Control System - DTC P0461 Through U0121
›
DTC P0564: Cruise Control Multi-Function Switch Circuit
›
Notes
DTC P0564: Cruise Control Multi-Function Switch Circuit: Notes

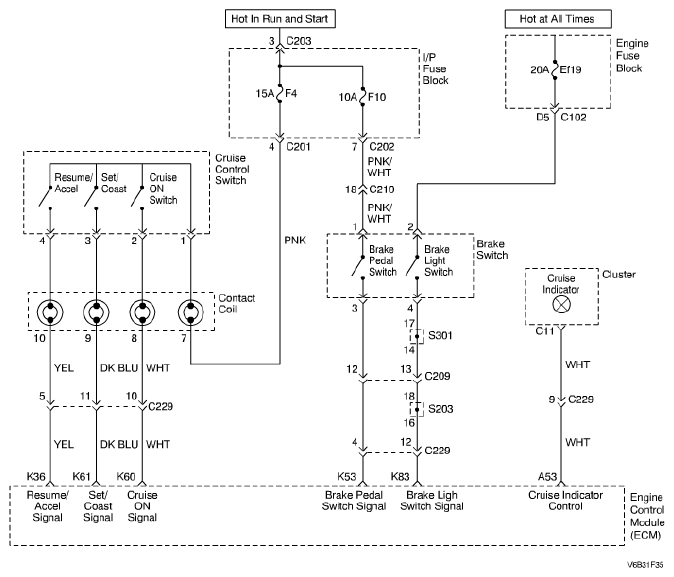

Fig 1: Cruise Control Multi-Function Switch Circuit - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
