Home › Suzuki › 2006 › Verona Base › Repair and Diagnosis › Engine Performance › System › Engine Control System - DTC P0461 Through U0121 › DTC P0656: Fuel Level Output Circuit › Notes

DTC P0656: Fuel Level Output Circuit: Notes

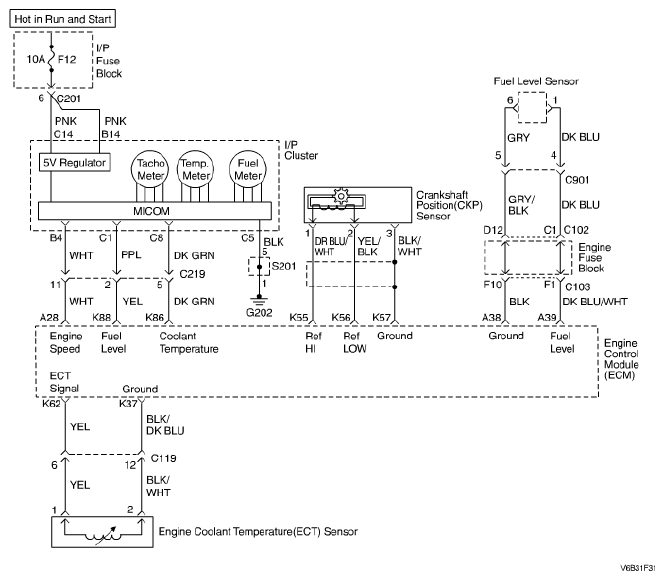

Fig 1: Fuel Level Output Circuit - Wiring Diagram
G04718753Courtesy of SUZUKI OF AMERICA CORP.
