Engine Control System - Introduction
›
Diagnostic Information and Procedures
›
Data Link Connector Diagnosis
›
Notes
Data Link Connector Diagnosis: Notes

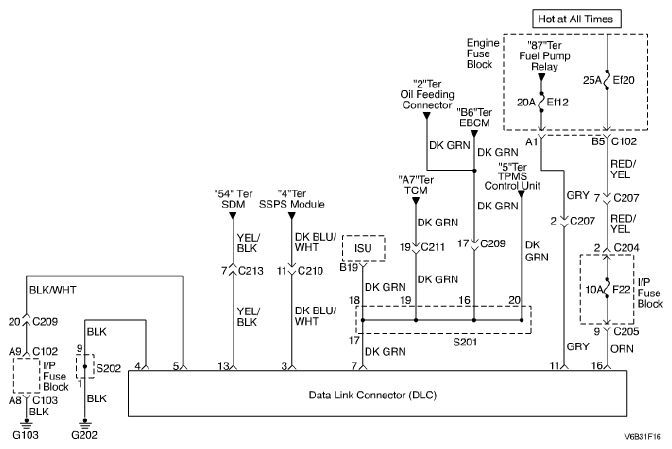

Fig 1: Data Link Connector Diagnosis - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
