Engine Control System - System And Component Checks, Specifications, Special Tools And Equipment
›
Ignition System Check
›
Notes
Ignition System Check: Notes

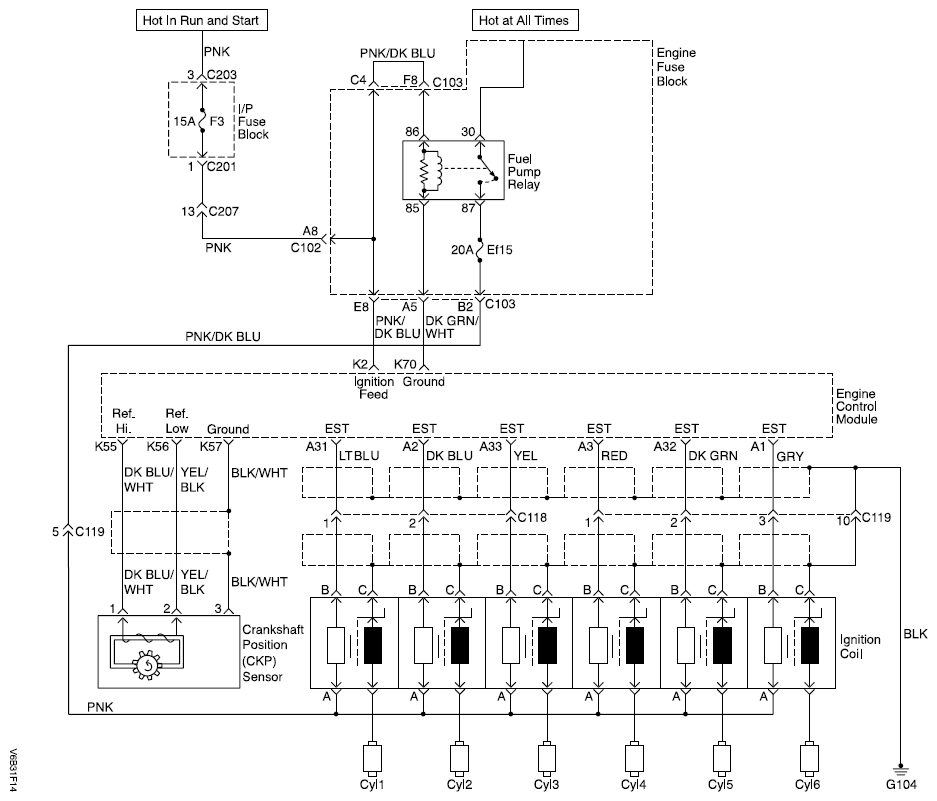

Fig 1: Ignition System Check - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
