Engine Coolant Temperature Sensor Removal

  1. Relieve the pressure in the coolant reservoir by turning the coolant reservoir cap slightly counterclockwise.
  2. Disconnect the negative battery cable.
    Fig 1: Identifying Coolant Reservoir Cap
    G04718817Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the VIS vacuum tank. Refer to VIS Vacuum Tank Removal Z.
    Fig 2: Identifying VIS Vacuum Tank
    G04718818Courtesy of SUZUKI OF AMERICA CORP.
  4. Disconnect the engine coolant temperature sensor (ECTS) connector.
  5. Remove the ECTS from the cylinder head.

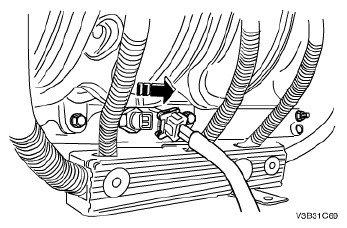

    Fig 3: Disconnecting Engine Coolant Temperature Sensor (ECTS) Connector
    G04718819Courtesy of SUZUKI OF AMERICA CORP.
