Intake Air Temperature (IAT) Sensor Installation

Installation should follow the removal procedure in the reverse order.
Install the IAT sensor.
Tighten:

Tighten the intake air temperature (IAT) sensor to 20 - 30 N.m (15 - 22 lb-ft).

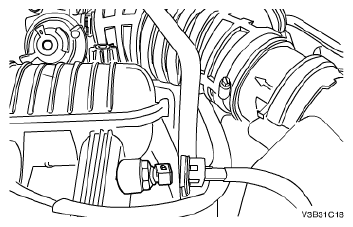

Fig 1: Identifying IAT Sensor And Connector
Courtesy of SUZUKI OF AMERICA CORP.
