Exhaust System Components

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

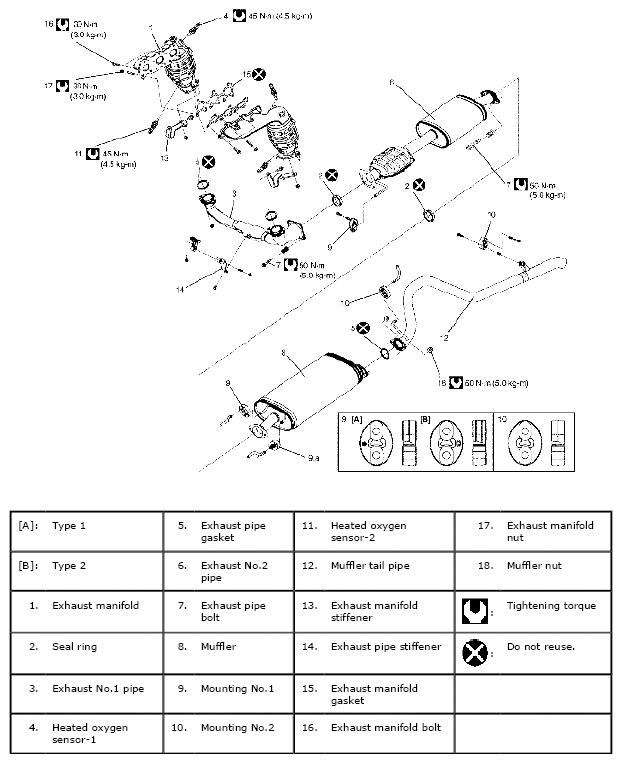

Fig 1: Exploded View Of Exhaust System Components With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.
