Headlight Diode Removal and Installation: Notes

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Remove heater blower unit referring to BLOWER UNIT REMOVAL AND INSTALLATION .
Remove headlight diode (1) from main harness (2) as shown in the figure.

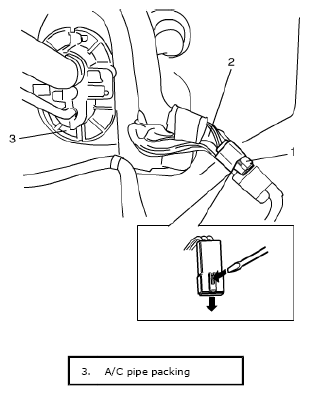

Fig 1: Identifying Headlight Diode, Main Harness And A/C Pipe Packing
Courtesy of SUZUKI OF AMERICA CORP.
