Front Parallel Link Removal

  1. Raise and suitable support the vehicle.
  2. Remove the rear wheels.
  3. Remove the rear parallel link bolt-to-knuckle and the bolt-to-rear crossmember.
  4. Remove the rear parallel link.

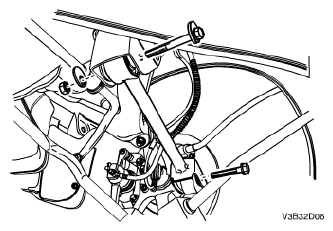

    Fig 1: Identifying Rear Parallel Link & Bolts
    G04719298Courtesy of SUZUKI OF AMERICA CORP.
