Transaxle Housing Components
Transaxle Housing Components

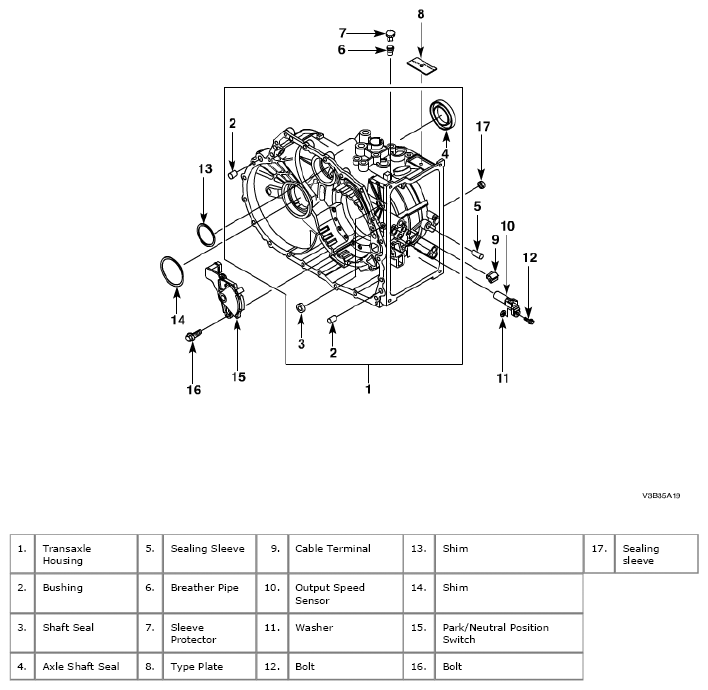

Fig 1: Identifying Transaxle Housing Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
