Camshaft Position (CMP) Sensor Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the camshaft position (CMP) sensor connector.
  3. Remove the CMP sensor.

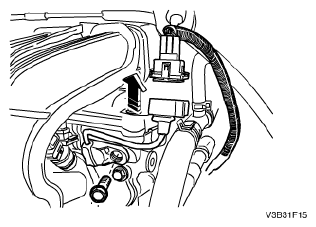

    Fig 1: Disconnecting CMP Sensor Connector
    G04718822Courtesy of SUZUKI OF AMERICA CORP.
