Electronic Shift Control System Description: Notes

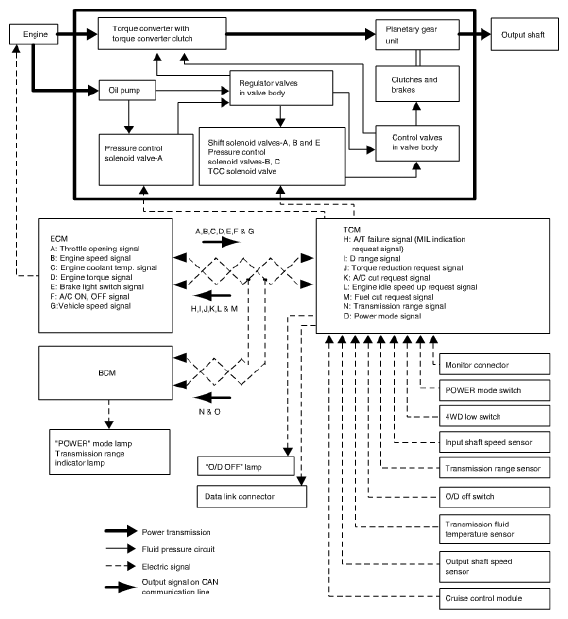

Fig 1: Electronic Shift Control System - Block Diagram
G04722525Courtesy of SUZUKI OF AMERICA CORP.
