Automatic Transmission
›
Repair Instructions
›
Automatic Transmission Unit Components
Automatic Transmission Unit Components

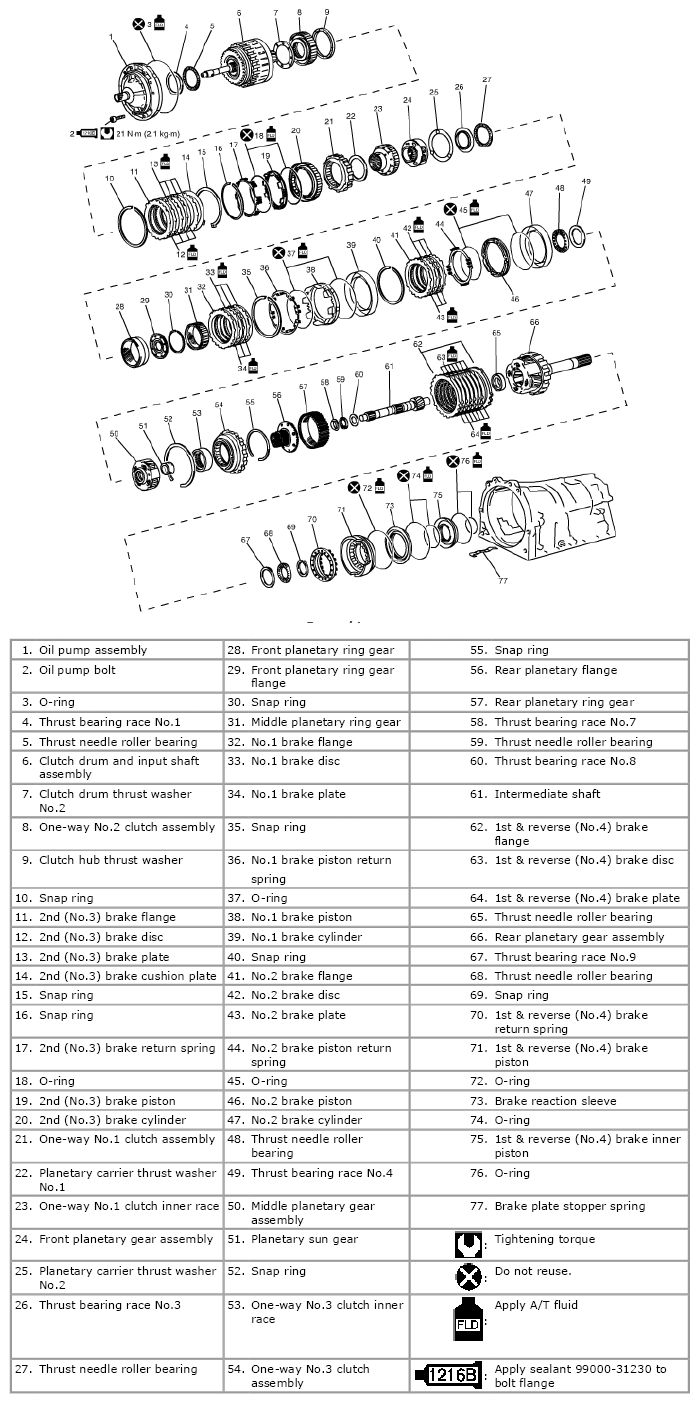

Fig 1: Exploded View Of Automatic Transmission Unit Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
