Oil Pump Assembly Components
Oil Pump Assembly Components

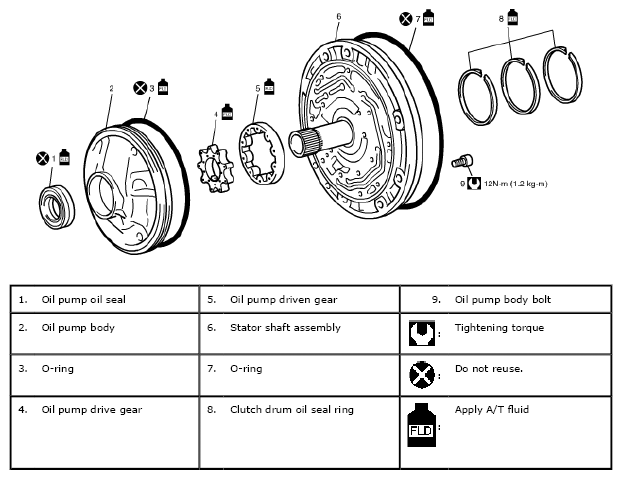

Fig 1: Oil Pump Assembly Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
