Automatic Transmission
›
Repair Instructions
›
Select Cable Component
Select Cable Component

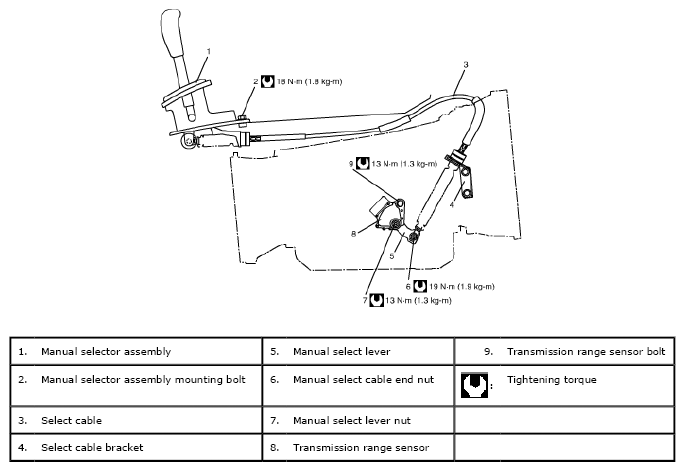

Fig 1: Select Cable Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
