Transfer Case Component
Transfer Case Component

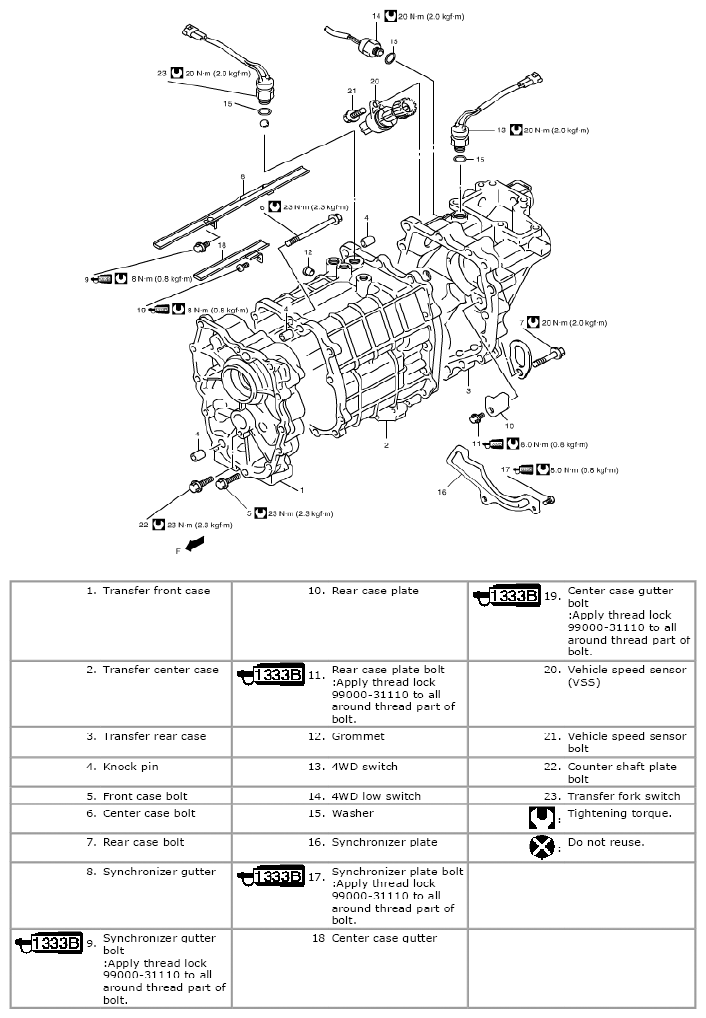

Fig 1: Transfer Case Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
