Front Door Glass Components
Front Door Glass Components

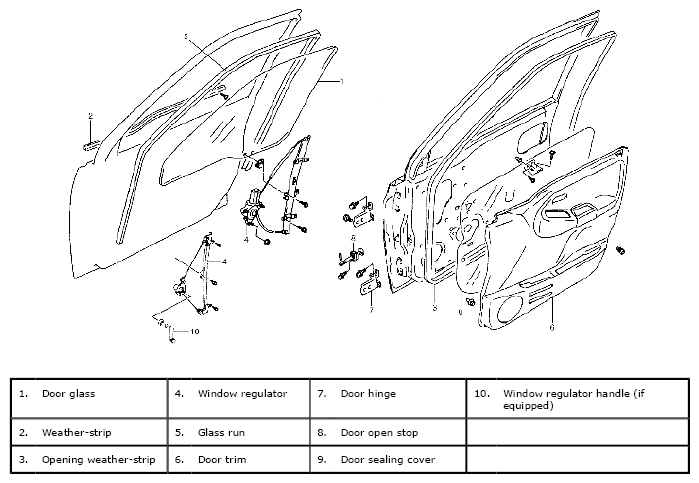

Fig 1: Identifying Front Door Glass Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
