Transfer Gear Components

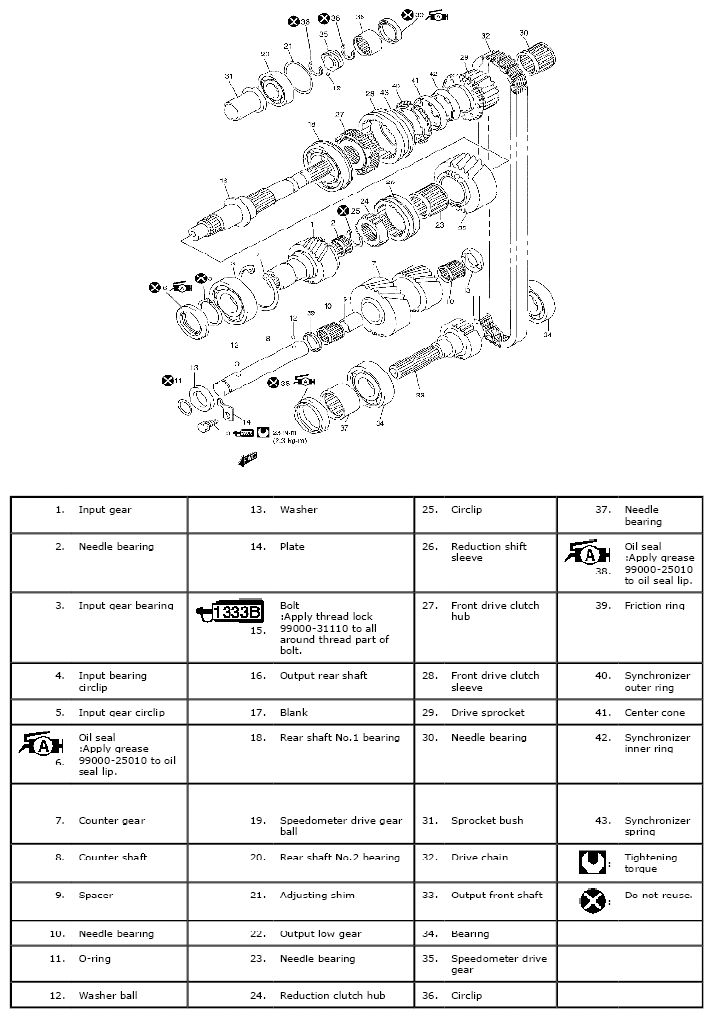

Fig 1: Transfer Gear Replacement Components With Torque Specifications
G04722199Courtesy of SUZUKI OF AMERICA CORP.
