A/C Compressor Relay Control System Check
›
Wiring Diagram
A/C Compressor Relay Control System Check: Wiring Diagram

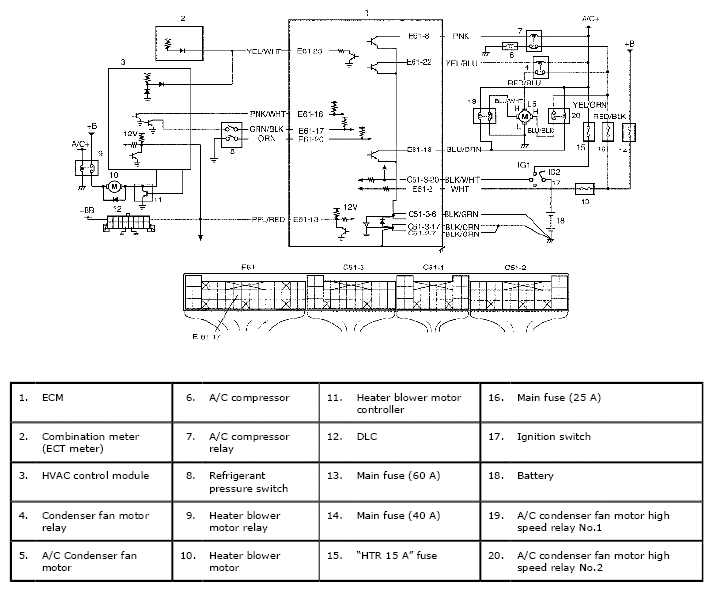

Fig 1: A/C Compressor Relay Control - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
